Window shutter dimension

Polar Bear
Booster

Hello,

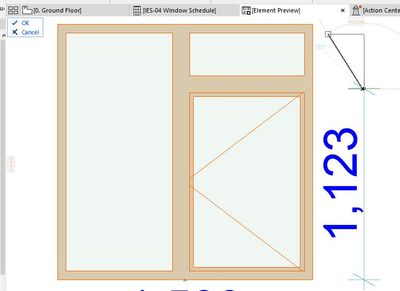

When i change the size of window shutters, the dimension does not follow.



How to please, get the dimensions to follow what it's related with?



thanking you

Screen Shot 2022-08-07 at 18.31.23.png

Archicad 25 - 5010
Macbook pro 13" /Big sur 11.4 + External 4K 27"
5 REPLIES 5
Andrii Levko
Expert

Hi,



Probably you have set Dimension Point in Annotate. Just go into Annotate and move Dimension Point.




Andrii
AC 8.1 - 27 INT/POL 3001
Win11 | Ryzen 5600 | 16 GB | GTX 1650
Polar Bear
Booster

Thanks,



I am not sure if i understand the solution: i should move the dimension line to the correct shutter position?



For several windows, i think it should be automatic, like on other bim softwares.  How to make it associative???

Archicad 25 - 5010
Macbook pro 13" /Big sur 11.4 + External 4K 27"

It is associative by default, but probably you have set Dimension Point early. If you have set dimension point then dimension will not follow for window size. If you came back Dimension Point to the edge of window then dimension will following for window size.

Andrii
AC 8.1 - 27 INT/POL 3001
Win11 | Ryzen 5600 | 16 GB | GTX 1650
Polar Bear
Booster

The problem is not the overall dimension, the problem is the shutter dimension, the inner partition.

Archicad 25 - 5010
Macbook pro 13" /Big sur 11.4 + External 4K 27"

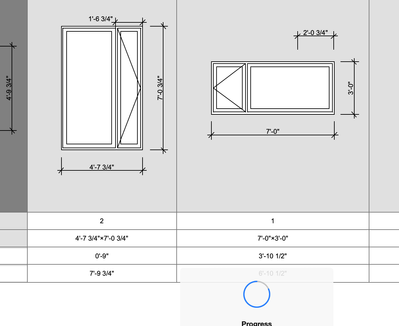

As far as I know for schedules no automatic dimensions for shutters, only Nominal size, Unit size, Wallhole size ect.
