I've had some excellent success using slabs to create the stands, and "multiply + elevate" was just discovered fully by me last night (I'm unfortunately one of those people who don't normally read manuals, so it takes me a while to learn tricks of the trade....)
This "multiply + elevate" works awesome for creating the stands along straight portions and means I can produce unlimited rows VERY easily.. however I'm having problems trying to do that around corners...
the REASON is because say you want a slab 800 mm thick and to follow the contour of a circle, the inside and outside perimeters are different lenghts, therefore simply offsetting the object does not fit, since it will need different perimeters... is there an EASY solution for stretching multiple slabs? similar to the ease of offsetting (multiplying) the same shaped slab.. in AutoCAD the program automatically resizes if it's a PLINE I think, but I can't see any feature like that for slabs....
Thanks again, you've all been very helpful so far...!

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
ā2004-03-04 10:40 PM
You can then radius the corners by selecting the slab tool in the toolkox and clicking a corner and select the radius icon on the pet palette the pops up.
Also if you want to lengthen the straight sections of multiple slabs use the marquee box around the end and then apply the strech command
A warning - once you have radiused the corner they are a pain to remove ( click the radius- turn into a chamfer - drag the extra hotpsots to the corner to clean up)
John Hyland : ARINA : www.arina.biz
User ver 4 to 12 - Jumped to v22 - so many options and settings!!!
OSX 10.15.6 [Catalina] : Archicad 22 : 15" MacBook Pro 2019 [/size]

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
ā2004-03-05 01:24 AM

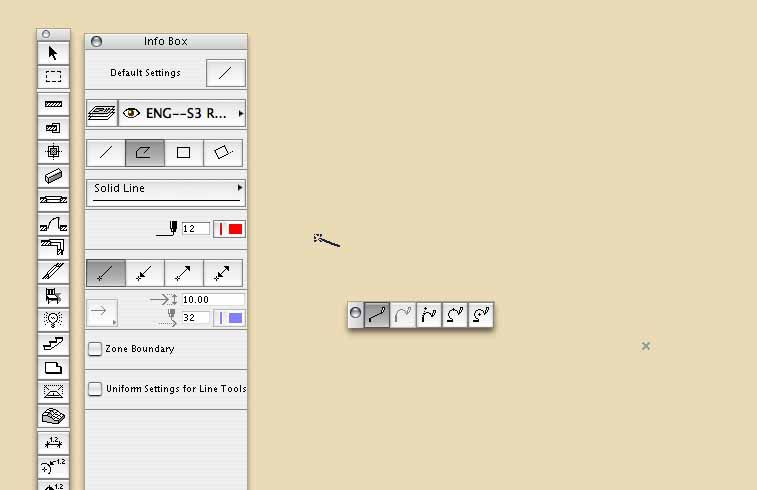

Using the polyline tool with the automatic line/arc pet palette, this is the quickest way to define a shape with radiused edges.

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
ā2004-03-05 01:25 AM
Dwight wrote:
What I am on about is using offset linework to establish the edges of the stepped slabs.
Using the polyline tool with the automatic line/arc pet palette, this is the quickest way to define a shape with radiused edges.

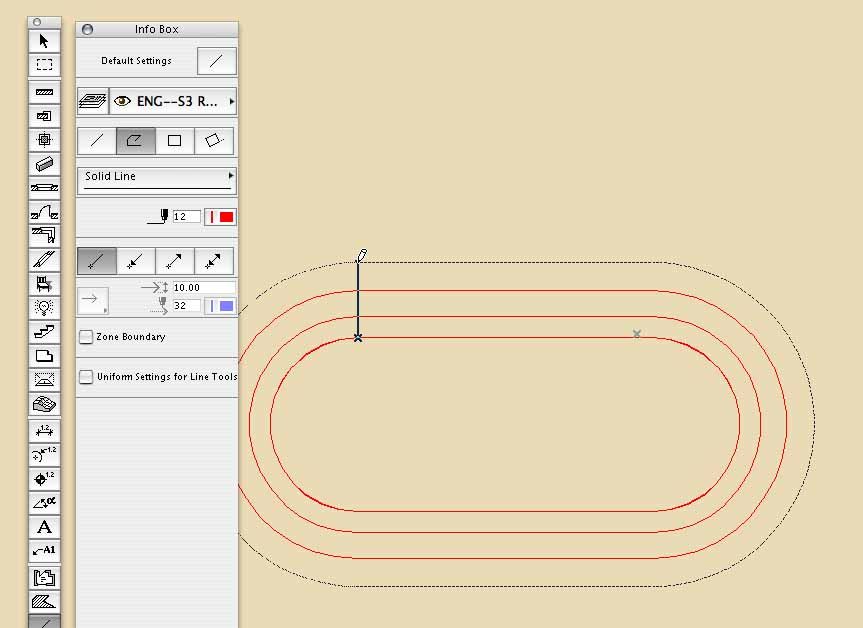

Here is a almost finished shape

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
ā2004-03-05 01:29 AM
Dwight wrote:Then magic wand and offset the shape to estalish the edges of the outer slabs.Dwight wrote:
What I am on about is using offset linework to establish the edges of the stepped slabs.
Using the polyline tool with the automatic line/arc pet palette, this is the quickest way to define a shape with radiused edges.
Here is a almost finished shape

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
ā2004-03-05 01:30 AM
Dwight wrote:Then make slab donuts with the magic wand. Make the outer edge then delete the inner part. You can change the depth of the slabs as you go.Dwight wrote:Then magic wand and offset the shape to estalish the edges of the outer slabs.Dwight wrote:
What I am on about is using offset linework to establish the edges of the stepped slabs.
Using the polyline tool with the automatic line/arc pet palette, this is the quickest way to define a shape with radiused edges.
Here is a almost finished shape

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
ā2004-03-05 01:30 AM
Dwight wrote:I prefer to do the slab height changes in 3DDwight wrote:Then make slab donuts with the magic wand. Make the outer edge then delete the inner part. You can change the depth of the slabs as you go.Dwight wrote:Then magic wand and offset the shape to estalish the edges of the outer slabs.
Here is a almost finished shape

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
ā2004-03-05 01:32 AM
Dwight wrote:And here's the final thingie.Dwight wrote:I prefer to do the slab height changes in 3DDwight wrote:Then make slab donuts with the magic wand. Make the outer edge then delete the inner part. You can change the depth of the slabs as you go.
Then magic wand and offset the shape to estalish the edges of the outer slabs.

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
ā2004-03-05 01:40 AM
Dwight wrote:And darned if you could completely skip the lines part and just do it by offsetting slabs.... duh.Dwight wrote:And here's the final thingie.Dwight wrote:I prefer to do the slab height changes in 3D
Then make slab donuts with the magic wand. Make the outer edge then delete the inner part. You can change the depth of the slabs as you go.

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
ā2004-03-05 02:21 AM
Dwight did you score some points with this post or what!

----------------------------------------------
arkhos-tekton, architects
carmichael, ca
Mac OS X 10.15.5
IMac Retina 5K, Intel Core I7
32 GIG Memory, AMD Radeon R9
ArchiCAD 24
