roof bug - multi plane geometry: planes disappearing

bgoodale
Booster
i am experiencing a weird glitch with one of my multi-plane geometry roof. one of the planes just disappears. it is a clover shaped gable roof. if i move the edge of the plane that has disappeared a 1/16th in ieither direction, it reappears, if i change the pitch it reappeard, but if i put it exactly where it is supposed to go, it disappears. i saw several other threads with similar issue, but no clear resolution. i think it is a siympton of an extra node at the confluence of the ridges, but how do I fix it with out some wanky work around?

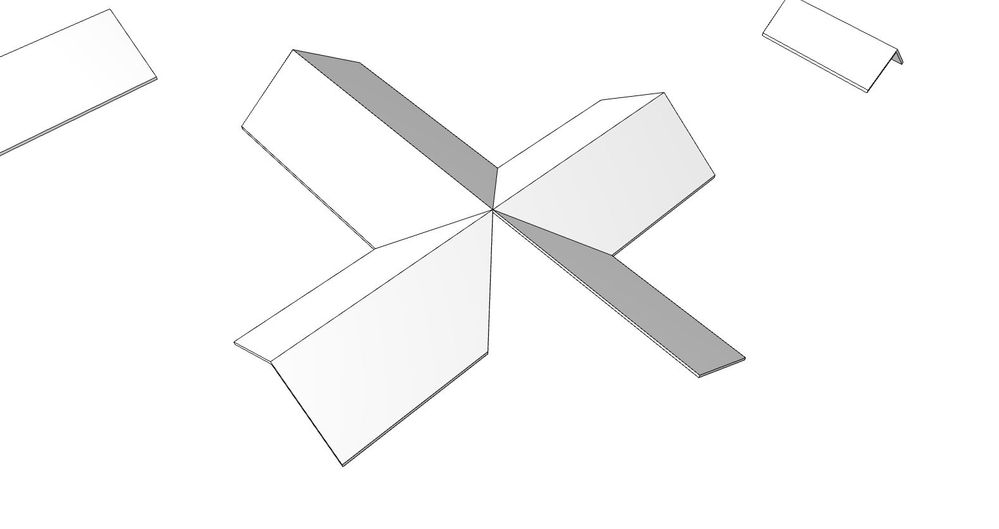

ROOF GLITCH.jpg
