Ceiling Tiles not rendering Bump/Displacement in White Model

johanSR
Booster

Hi all.

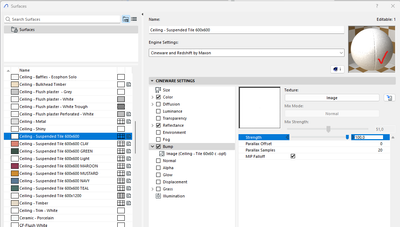

I am producing White Model renders, but for some reason the 600x600 Suspended ceiling doesn't render the bump or displacement...



The carpet shows displacement...

I have created various material setups, alpha channels, a few tutorials, etc, but nothing. It's just smooth.

I would like to show the grid of the tiles...







Any ideas?



Operating system used: Windows

1 ACCEPTED SOLUTION

Accepted Solutions
Solution
johanSR
Booster

It turns out there was another slab over this one on a different layer which influenced the material...

I moved the slab on the other layer down by 15mm and it worked...

URRGHHH!!!



Simple solution, long problem searching...

View solution in original post

2 REPLIES 2
Ricardo Lopez
Expert

Hi @johanSR



Sadly, as seen on Archicad Help documentation, White Model Effect turns all surfaces as white, except those which use transparency or alpha channels (those remain transparent).

You could render that white model effect image and also a 3D Document from the same camera/point of view to obtain vector line image, so you could compose both in an external photo editing tool.



Best regards.

M. Arch. Ricardo López
BIM Consultant | Project Solutions and Services | Panama
AC17-27 SPA+INT | Windows 11 | MSI CreatorPro M16 HX C14VJG, 64GB, Nvidia Quadro RTX 2000 Ada Generation
Solution
johanSR
Booster

It turns out there was another slab over this one on a different layer which influenced the material...

I moved the slab on the other layer down by 15mm and it worked...

URRGHHH!!!



Simple solution, long problem searching...
