DWG export to wrong coordinates (layout with multiple drawings) (2)

hugosandstroem
Participant

Hi,



Just posted this under Documentaion in this forum but mayby this is the right place?

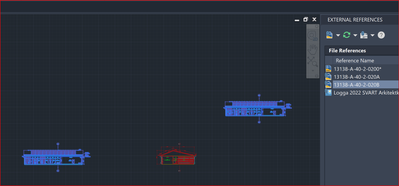

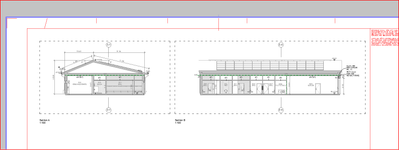

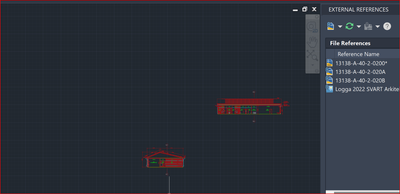

When i publish this (1) layout to dwg (with linked xref models) it looks like this (2) when opening the model in autocad, but if i then manually xref one of the same model files again in autocad, it gets placed in a different location (and then ofcourse wont show in the viewport). It only differs with the one xref shown below, not both views/xrefs.



1.




2.




3.




why does this happen and how do i control it?
