Dimension Format in Schedule

Anonymous
Not applicable
What setting can I use to do away with the 0 in front of 1 3/4". The dimension scheme I am using should do that but it does not. Thanks.

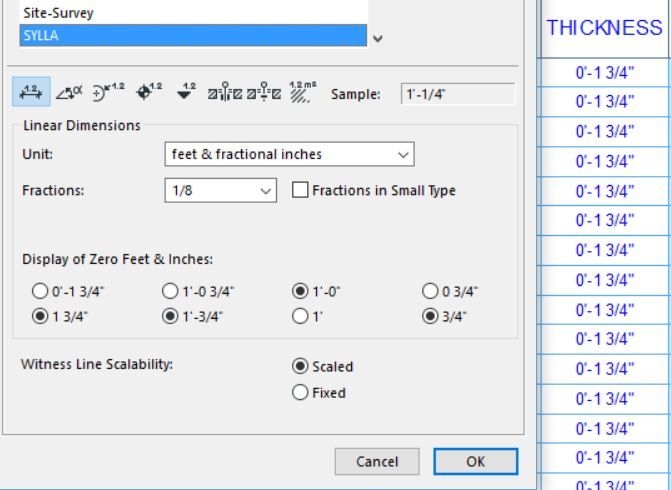

Door Schedule Dimension Format.JPG
5 REPLIES 5
After playing around with this, I believe it is a bug. And it was the same in AC20.
Richard
--------------------------
Richard Morrison, Architect-Interior Designer
AC26 (since AC6.0), Win10
There are several problems displaying units of measure in Schedules that never seem to get fixed. Make a Door into a Cased Opening by selecting the Empty Door Leaf and see how the dimension of the leaf is scheduled - and there is no leaf ! The display of leaf thickness in that case is controlled by Calculation Unit Rules.

ArchiCAD 25 7000 USA - Windows 10 Pro 64x - Dell 7720 64 GB 2400MHz ECC - Xeon E3 1535M v6 4.20GHz - (2) 1TB M.2 PCIe Class 50 SSD's - 17.3" UHD IPS (3840x2160) - Nvidia Quadro P5000 16GB GDDR5 - Maxwell Studio/Render 5.2.1.49- Multilight 2 - Adobe Acrobat Pro - ArchiCAD 6 -25

Daniel Kovacs
Graphisoft Alumni
Graphisoft Alumni
Hello Cheikh T Sylla,

You are not doing anything wrong, this is a bug, we are working on fixing it. It does not look nice, but luckily the value is correct, so until the fix this shouldn't cause imprecision issues.

Also, the problem Steve mentioned is a library issue that seems to be specific to the doors in the US Library. I have tried with INT doors as well, and it worked fine. I have let the developers know about this issue, hopefully it will be fixed.

Regards,
Daniel Alexander Kovacs

Professional Services Consultant

GRAPHISOFT



For Troubleshooting and useful Tips & Tricks visit
Anonymous
Not applicable
Daniel,

Thanks.
dkovacs wrote:
.... so until the fix this shouldn't cause imprecision issues....
Regards,
To the person I am selling the Plans to, the defects in the program make me look like I don't know how to use the program properly.
