Export BEAM Archicad Objects as IFC Beam

Mario Sacco
Expert

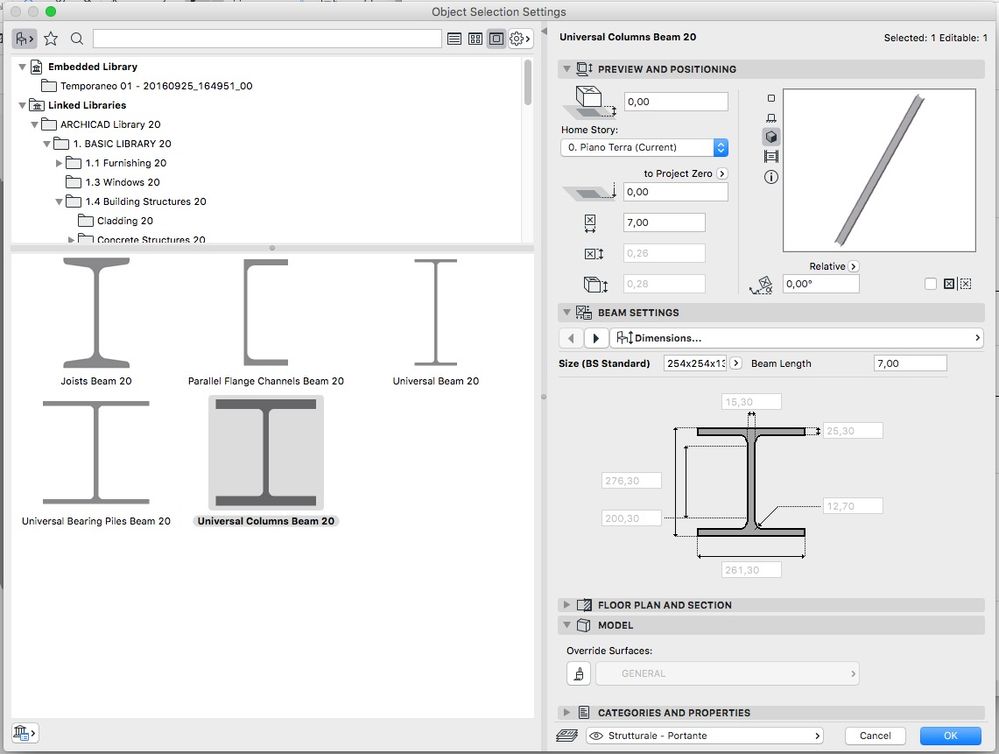

I trying to export the beams of the Archicad Library in IFC.
When I import again that in Archicad and suppose in Tekla, it does not recognize them as normal beam native archicad component: extrusion of a profile along a vector.
Did someone found a IFC setting to export Beam object as real beam?
MacBook M1 Max 64GB- OS X 12.2.1 - Archicad 27
https://www.archiradar.it/en/
4 REPLIES 4
alemanda
Advocate
What if you assign to the object the type "beam" (in element classification)?
It's just a try I suggest to do ... I never tried.
AC 19 and AC21 latest hotfix
Win 10 Pro 64bit
Double XEON 14 CORES (tot 28 physical cores)
32GB RAM - SSD 256GB - Nvidia Quadro K620
Display DELL 25'' 2560x1440
www.almadw.it
Mario Sacco
Expert
alemanda wrote:
What if you assign to the object the type "beam" (in element classification)?
It's just a try I suggest to do ... I never tried.
I already tried.
MacBook M1 Max 64GB- OS X 12.2.1 - Archicad 27
https://www.archiradar.it/en/
Laszlo Nagy
Community Admin
Community Admin
I checked this and I think this is a limitation.
It is exported as IfcBeam, but it is exported as A BREP, not as an Extrusion, that is the limitation.
When a Beam element classified as Beam is exported to IFC, it is exported as an Extrusion. This is normal since in ARCHICAD it always exists as a Profile extruded along a path.
However, when an Object element classified as a Beam is exported to IFC, it is always exported as a BREP (boundary representation). This is because a GDL Object can have any geometry and only the BREP geometry method is guaranteed to produce the exact same geometry in the IFC file. So an GDL Object is always exported as BREP.
If you go to the Conversion Options Dialog in the IFC Translation Setup Dialog's Export Options panel, you will notice that there is no checkbox for the conversion of GDL Objects. This is because they are always exported as BREP due to the above.

And since the IFC contains a BREP geometry, which can be any kind of geometry (even though it is a simple Beam shape), it cannot be converted back into an extruded geometry in ARCHICAD. So it cannot be imported into a Beam, only into either an Object or a Morph, both of which can reproduce the exact BREP geometry in ARCHICAD. I suppose this works the same way in Tekla as well.
Get Archicad Tips at https://twitter.com/laszlonagy
AMD Ryzen 1700X CPU, 48 GB RAM, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), WIN10 PRO ENG, Ac20-Ac27
Loving Archicad since 1995
Mario Sacco
Expert
Thank you Laslo
Until now I haven't found any solution.
I'm trying to understand if we can find a trick.

Attached the GDL code of a native Archicad BEAM (saving in gdl from floor plan).
I would try to examine the XML IFC FIle to understand if it's possible doing only simple changes in the text; comparing the different from a native BEAM and a Brep generated from an object with the GDL code of a native beam.

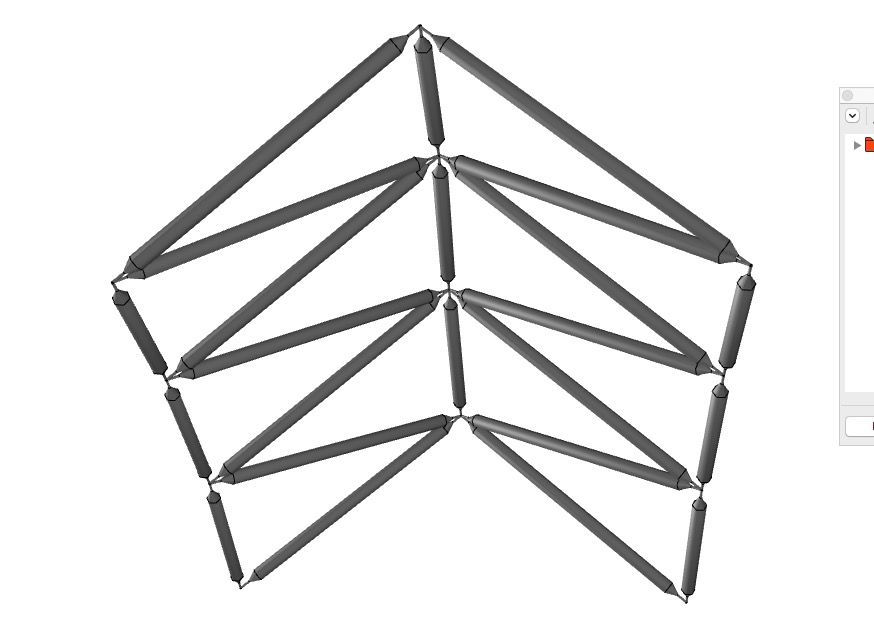

My aim is manage complex structure in Archicad then export them in tekla, such us the image attached.

!
