I’m a new user of Archicad. I recently stumbled on the graphic overrides setting but it only allows me to use graphic overrides in the model space of the drawing but when I place a drawing onto a layout, it reverts away from the graphic overrides. Anyone know how to change this?

3 REPLIES 3

@onkey89 , read these pages and they will give you an overview of the process




AC 27 INT 5060/WIN 11
AMD Ryzen 7 5800H with Radeon Graphics 3.20 GHz 16.0 GB

You need to redefine the View.

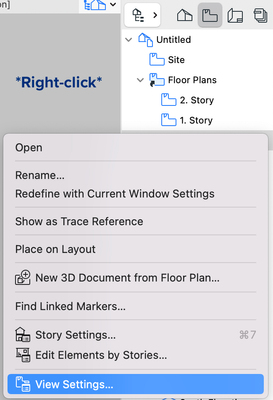

Either right click on the View in the View Map > View Settings > Graphic Override and change it to the saved combination you want to use.






Or right click on the View in the View Map > Redefine with Current Window Settings but note that this will redefine the View for all settings that differ between the Window and the View.

Rubia Torres
Graphisoft
Graphisoft

Hi @onkey89. Welcome on-board!

You need to change the settings of the view which you want to place/have placed in the layout.

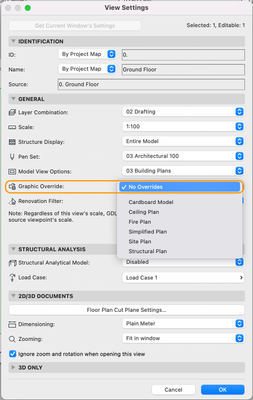

In the View Settings dialog, go to Graphic Override and assign the desired one, then save it. Back in the layout, update the drawing (right-click > update).

I hope this helps 😉


Screenshot 2022-03-26 at 13.37.09.png Screenshot 2022-03-26 at 13.14.52.png

Rubia Torres

Community Specialist | GRAPHISOFT SE
