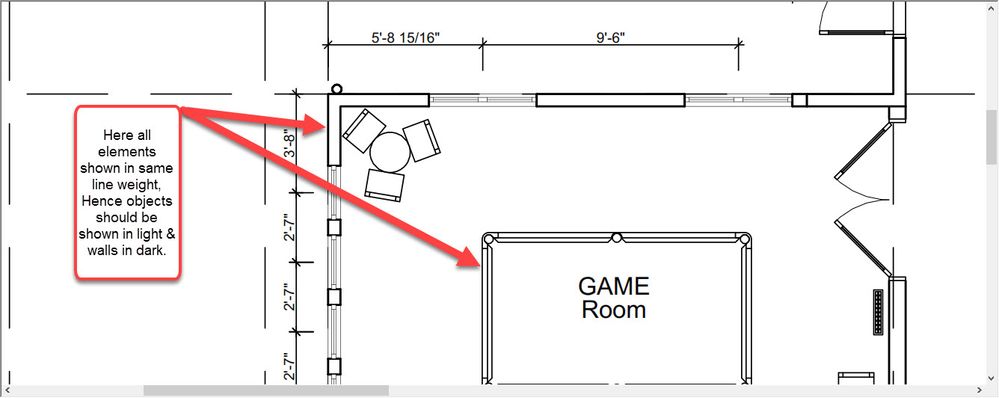

I am facing problem regarding pen set. i have customized as our standards but after exporting in pdf format line weight shown in same thickness of all elements.
Please see attached screen shot & suggest your comments.
Waiting your response.
Ashwani Kumar Shukla
Archicad 12-26, 64gb ram, window 10
Archicad 12-26, 64gb ram, window 10
Labels:
- Labels:
-
Data Exchange
1 REPLY 1
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2017-01-19 05:28 PM
Sorry, but those two lines you pointed out on the attached screenshot do not seem to have the same thickness to me. The Wall Contour is definitely thicker than the outline of that pool table or whatever it is.
Is it just the resolution of the image?
Is it just the resolution of the image?
....................................................................................................
Get Archicad Tips at https://twitter.com/laszlonagy
AMD Ryzen 1700X CPU, 48 GB RAM, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), WIN10 PRO ENG, AC20-AC26
Loving Archicad since 1995
Get Archicad Tips at https://twitter.com/laszlonagy
AMD Ryzen 1700X CPU, 48 GB RAM, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), WIN10 PRO ENG, AC20-AC26
Loving Archicad since 1995
