Texture alignment in a Google Warehouse object

Scott Bulmer
Booster

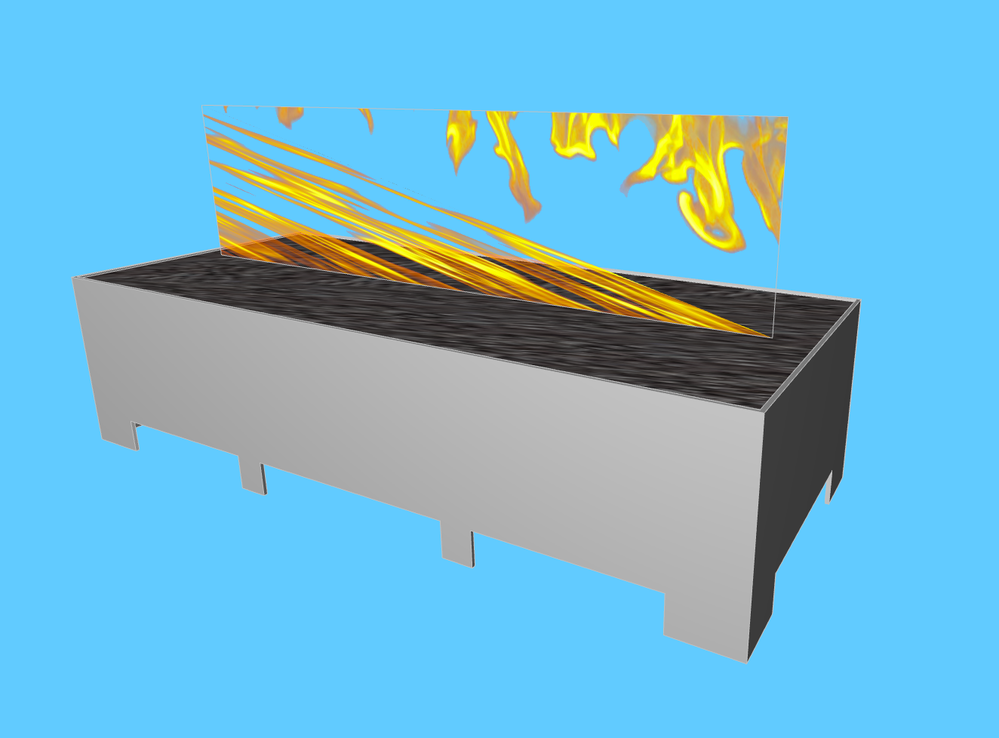

Greetings, I have imported objects from Google Warehouse in Sketchup format. When an image map is included in the import, the image becomes out of alignment (see attached). The imported object comes in as one piece even though it is made of of many in Sketchup. Does anyone know of a way to import a Sketchup object insuring proper alignment of the image map? Thank you, Scott

Screen Shot 2016-04-11 at 10.36.38 AM.png
AC27 v. 4060 w/ MEP, Cadimage, Twinmotion 2023.2.2 using AC from AC6.0, 2021 MacPro M1 chip, Adobe CC. Used AC on both platforms.
3 REPLIES 3
Stress Co_
Advisor
I don't have the solution, but to relay a weird experience with the same...

I imported an object from 3D warehouse and got similar results.
I copied the object into a second PLN file and the image map mysteriously
corrected itself. I haven't tried to replicate the process.

What happens if you convert the object to a morph?
Marc Corney, Architect
Red Canoe Architecture, P. A.

Mac OS 10.15.7 (Catalina) //// Mac OS 14.5 (Sonoma)
Processor: 3.6 GHz 8-Core Intel Core i9 //// Apple M2 Max
Memory: 48 GB 2667 MHz DDR4 //// 32 GB
Graphics: Radeon Pro 580X 8GB //// 12C CPU, 30C GPU
ArchiCAD 25 (5010 USA Full) //// ArchiCAD 27 (4030 USA Full)
Scott Bulmer
Booster
Thank you Marc, it worked! Copying to a new file did not work but converting to a morph worked after adjusting the Surfaces in Attribute Manager and Design>Align Texture in 3D. Scott
AC27 v. 4060 w/ MEP, Cadimage, Twinmotion 2023.2.2 using AC from AC6.0, 2021 MacPro M1 chip, Adobe CC. Used AC on both platforms.
Stress Co_
Advisor
For anyone who may stumble upon this thread:

The answer to weird texture alignment, is to check that the
object is NOT "mirrored"
.
(I had my object tool set to mirror as a default).

Unclick the box (as noted) or mirror the object in place.
