making a lamp

keily
Participant


hey everyone! how do i make this light in archicad?? is there potential to reshape/stretch an existing lamp for example the below one, to this shape? can I make it from a morph? or how do I get it? could I revolve around a shape? not very sure :))






4 REPLIES 4
Lingwisyer
Guru

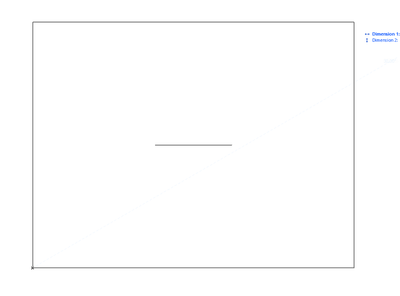

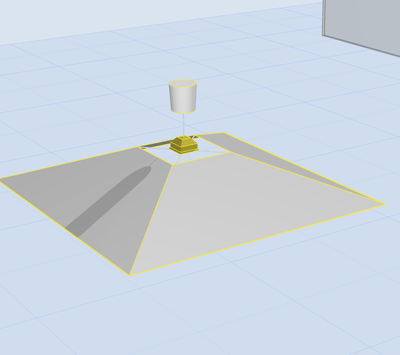

Draw a section of half of the short side, then use the Shell Tool to extrude your shape.





Ling.

AC22-23 AUS 7000Help Those Help You - Add a Signature
Self-taught, bend it till it breaksCreating a Thread
Win11 | i9 10850K | 64GB | RX6600 Win10 | R5 2600 | 16GB | GTX1660

how do i use the shell tool to extrude it?



thanks 🙂

Lingwisyer
Guru

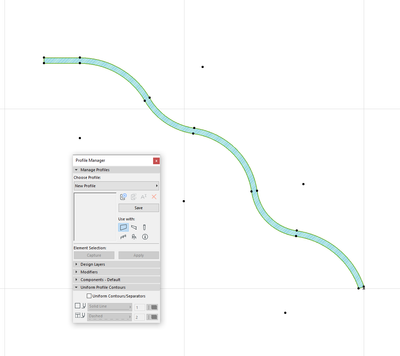

Actually, it would be better to do a Complex Profile and trace the perimeter.






Profile Editor


Complex Wall




Fillet Corners



You would then duplicate it for the number of elements in your light, set and different materials, then save it as an object.



AC22-23 AUS 7000Help Those Help You - Add a Signature
Self-taught, bend it till it breaksCreating a Thread
Win11 | i9 10850K | 64GB | RX6600 Win10 | R5 2600 | 16GB | GTX1660

yeah, i too would go with the complex profile option
