showing door casing in schedule

Anonymous
Not applicable
Is it possible to show doors casing in schedules ? "in graphic representation of elevation and / or plan " ?

Thank you.
8 REPLIES 8
Thomas Holm
Booster
A while since I did that, but as I recall it will show if it's part of the window object. Which it is if you're using Archicad's standard windows.
AC4.1-AC26SWE; MacOS13.5.1; MP5,1+MBP16,1
Anonymous
Not applicable
That what I thought too specially that it shows as part of the door in the settings preview box.

but not in the schedule . anyone ideas ?
vistasp
Advisor
Scale Sensitivity?
= v i s t a s p =
bT Square Peg
https://archicadstuff.blogspot.com
https://www.btsquarepeg.com
| AC 9-27 INT | Win11 | Ryzen 5700 | 32 GB | RTX 3050 |
Anonymous
Not applicable
Not really. it affects the door leaf and the frame . but in all scales, no casing " both in front view and plan view"
Barry Kelly
Moderator
If they are part of the door object and they show in plan and 3D but not in the schedules (at the same scale as the plan) then they must have been scripted not to show.

Have a look in the object for a parameter to turn them off in schedules - this is a long shot but you never know.

Or look in the 2D & 3D scripts for something like ... IF GLOB_CONTEXT <> 6 THEN ... code for moddelling casing ... ENDIF

If it is there try commenting out the red bits so it models the casing in the schedules too.

This is all a bit of a guess without knowing exactly what library part you are using.

Barry.
One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Ivan Piljek
Participant

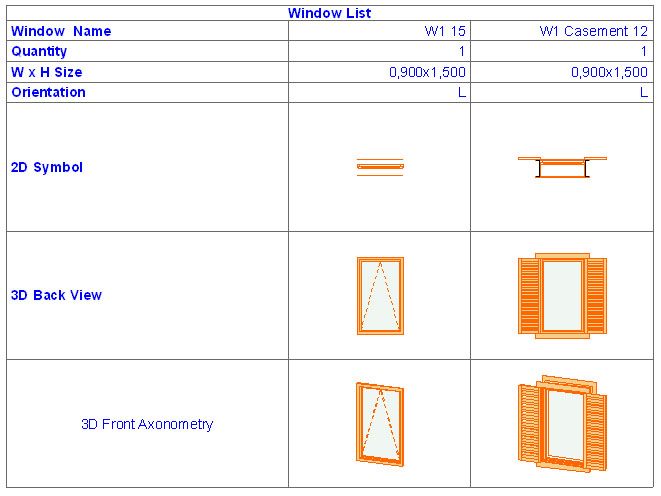

If you use library 12 everything works fine, casing and sunshades will show in schedules, but if you use lib 13, 14 and 15 this just wont work?
Ivan Piljek,
Barry Kelly
Moderator
See you other post for the answer.

http://archicad-talk.graphisoft.com/viewtopic.php?t=35262

Barry.
One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
ratnabhirud
Contributor
Hello everybody,

In continuation of the discussion,
Can I know, how to show Door / Window frame details((associated) - Frame sizes and elevational detail)) with its dimension in its Schedule so that separate detailing can be avoided.

Regards,

Ratna
AMD Ryzen 5 3600 6-Core Processor 3.59 GHz
Ram - 16.0 GB
System - Windows 10 Ultimate, 64 bit

NVEDIA GForce 8400GS

Archicad 9..., 24
