How to better control Slab and Mesh displayed on multiple stories

Minh Nguyen
Graphisoft Alumni
Graphisoft Alumni

Many times we want to show a slab or a mesh on a story above or below its home position. To control which story a slab or mesh is displayed, there are some presets that can be found under

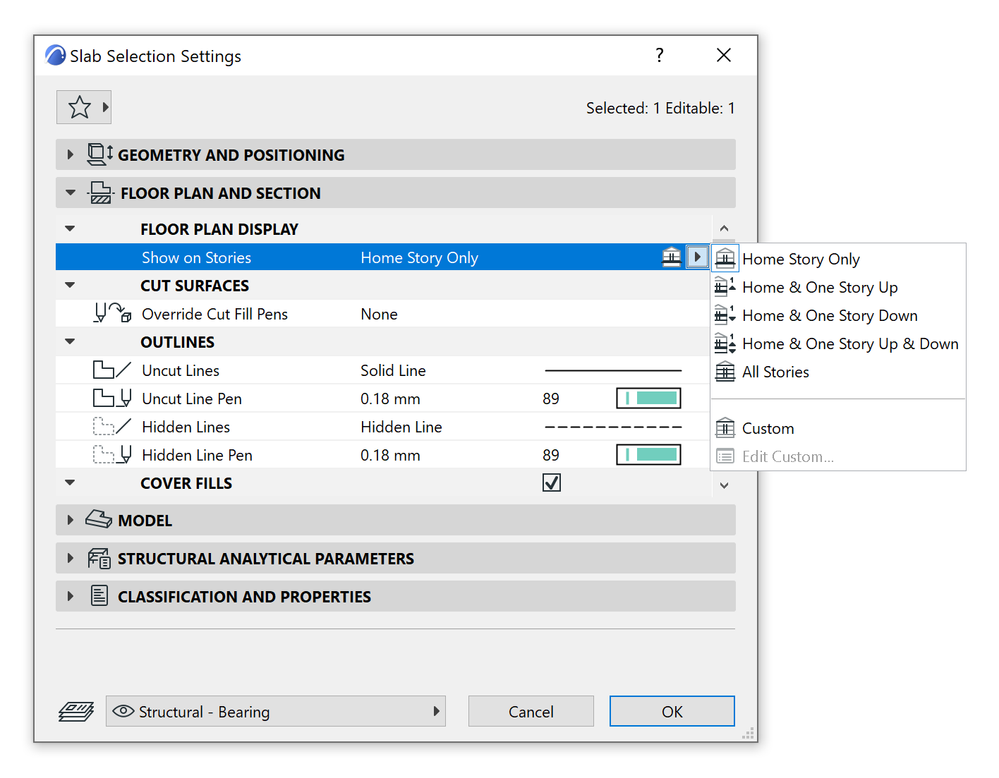

  • Slab/Mesh Settings dialog: Floor Plan and Section > Floor Plan Display > Show on Stories

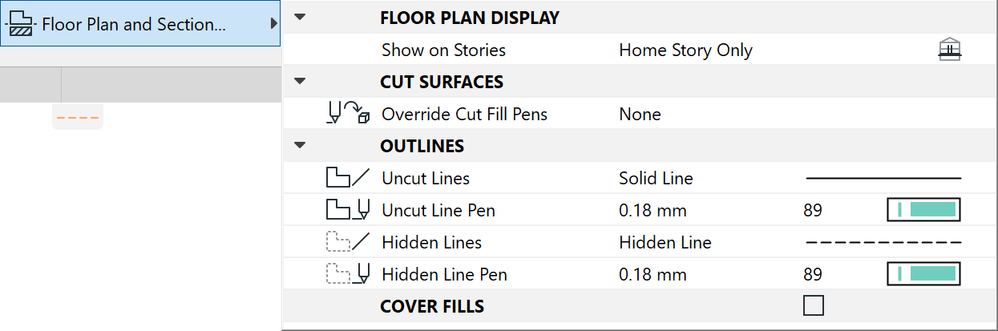

  • Info Box: Floor Plan and Section > Floor Plan Display > Show on Stories






Home Story only: The entire slab’s outline will only be displayed and editable on its Home Story.

Home & One Story Up: The outline of the entire slab will be displayed and editable on its Home Story and one story above

Home & One Story Down: The outline of the entire slab will be displayed and editable on its Home Story and one story below

Home & One Story Up & Down: The outline of the entire slab will be displayed and editable on its Home Story, one story above and one below

All Stories: The outline of the entire slab will be displayed on every story of the project



NOTE: The line type of the outline displayed on remote stories is set in Legacy Preferences.



By default, if you activate Cover Fill, the fill will be visible on each story where the slab's or mesh's outline is visible.

We can alter this behavior by using the Custom option. This option also let us choose which combination of stories to show the slab's outline on.






When you click on Custom, the Show on Stories - Custom Settings dialog box appears. Here you can set story display options for the slab’s outline and its fill separately.

Enter the number into the dialog to specify how many stories up/down the slabs are visible on. Select All Stories Up/Down will reveal the outline or fill in all stories above or below the home story, whereas None will disable them.



NOTE: here, you have the option to disable the Cover Fill displayed on Home Story also. If you have Cover Fill enabled, but untick the Home story under Show Fill on, the fill will not be visible on the slab's home story.

Fills can only be displayed on stories where the outline is also visible.
