rotate column

fa furrukh
Contributor

I have a problem, I did not rotate Column from one side, I already snap bottom with point cloud , but top side out of cloud , I want to rotate on top and match into point cloud , how I rotate one side or other tool for snap both side top/bottom ,


Column Issue.jpg
1 REPLY 1
Barry Kelly
Moderator

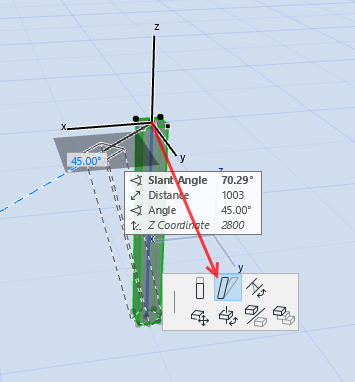

You can rotate a column about its axis by dragging the corner nodes, but that will rotate the top and bottom the same.






You can lean or angle a column (which I think is what you want) by dragging the axis top or bottom.






Barry.



One of the forum moderators.
