Object Paper Scale in GDL

Sculptdesign
Contributor

*FIXED*
Solution was to remove the MUL2 line and all works as expected



~



I've been trying this for too long and I'm hoping someone will be able to help.



I've created a 2D warning symbol that I can place on the model, I want it to show as paper size (the same size regardless of the view scale).



I've set "paperToModel = GLOB_SCALE/50" (GLOB_SCALE/1000 makes them too small) which does something, but not quite right. It looks like I need to add "_mm" somewhere but I can't figure out where.



Any help very much appreciated!

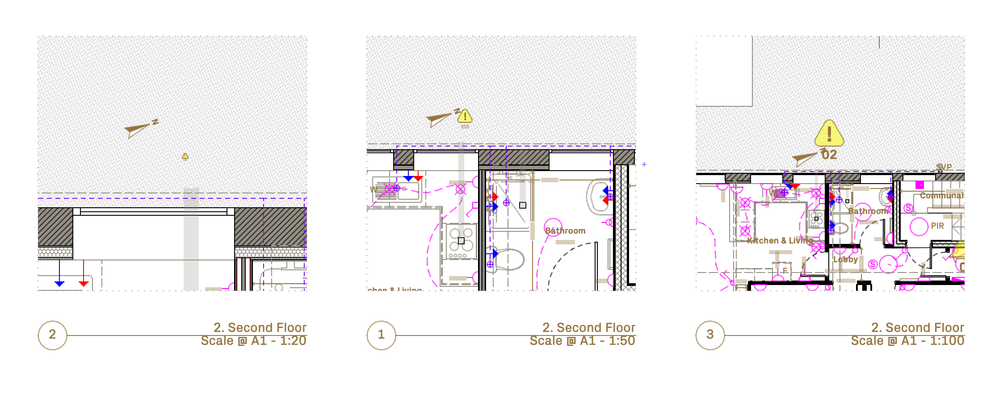

Screenshot 2021-12-16 at 08.33.15.png

2D Code is as follows:









!
!   Name     : CDM Warning.gsm
!   Date     : Wednesday, 15 December 2021
!   Version  : 25.00
!   Written by Archicad
!

paperToModel = GLOB_SCALE/50

mul2     A/0.241436*paperToModel, B/0.368736*paperToModel
add2     -6.979099723991*paperToModel, 1.647481290148*paperToModel
drawindex      10
pen     penAttribute_1
fill fillAttribute_1
poly2_b{5}      10,      2,      0,      3, penAttribute_1, penAttribute_2,
                   0,            0,            1,            0,            0,            1,            0,
        7.019099723991*paperToModel, -1.498553402547*paperToModel,      1,
        7.180535659386*paperToModel, -1.498553402547*paperToModel,      1,
        7.180535659386*paperToModel, -1.458553402547*paperToModel,    900,
                   0,          120,   4001,
        7.13445870784*paperToModel, -1.298745781412*paperToModel,      1,
        7.099817691688*paperToModel, -1.318745781412*paperToModel,    900,
                   0,          120,   4001,
        6.98445870784*paperToModel, -1.438553402547*paperToModel,      1,
        7.019099723991*paperToModel, -1.458553402547*paperToModel,    900,
                   0,          120,   4001
pen     penAttribute_3
set line_type lineTypeAttribute_1
poly2_b{5}      13,      1,      0,      3,      1,      0,
                   0,            0,            1,            0,            0,            1,            0,
        7.019099723991*paperToModel, -1.498553402547*paperToModel,      1,
        7.180535659386*paperToModel, -1.498553402547*paperToModel,      1,
        7.180535659386*paperToModel, -1.458553402547*paperToModel,    900,
                   0,          120,   4001,
        7.215176675537*paperToModel, -1.438553402547*paperToModel,      1,
        7.13445870784*paperToModel, -1.298745781412*paperToModel,      1,
        7.099817691688*paperToModel, -1.318745781412*paperToModel,    900,
                   0,          120,   4001,
        7.065176675537*paperToModel, -1.298745781412*paperToModel,      1,
        6.98445870784*paperToModel, -1.438553402547*paperToModel,      1,
        7.019099723991*paperToModel, -1.458553402547*paperToModel,    900,
                   0,          120,   4001,
        7.019099723991*paperToModel, -1.498553402547*paperToModel,      1
pen     penAttribute_4
hotspot2 7.099817691688*paperToModel, -1.498553402547*paperToModel
define style{2}    "AC_STYLE_1" "Px Grotesk Bold",          2.5,      0

paragraph		"AC_PRG_11"      2,            0,            0,            0,            1
    pen     penAttribute_3
    set style "AC_STYLE_1"
        "!"
endparagraph
textblock		"AC_TEXTBLOCK_11"            0,      5,            0,            1,            1,            1,
        "AC_PRG_11"
richtext2		7.102984129532*paperToModel, -1.42053340455*paperToModel, "AC_TEXTBLOCK_11"
define style{2}    "AC_STYLE_2" "Px Grotesk Bold",          1.5,      0

paragraph		"AC_PRG_12"      2,            0,            0,            0,            1
    set style "AC_STYLE_2"
        GLOB_ID
endparagraph
textblock		"AC_TEXTBLOCK_12"            0,      2,            0,            1,            1,            1,
        "AC_PRG_12"
richtext2		7.102984129532*paperToModel, -1.515662790148*paperToModel, "AC_TEXTBLOCK_12"
