Ceiling object area calulation

Jii
Participant

To make suspended ceilings I'd like to use ceiling objects like :

Ceiling Editor INT_v2.01

or

https://www.ecophon.com/en/e-tools/ecophon-bim-objects/

or

https://www.bimobject.com/fi/paroc/product/par_pan_des

.....

but the problem is I can't find a way to calculate ceiling area to my schedule.

Does anyone know how to get object (bottom) area to schedule ?

I can see the total area inside object information (attachment), but none of scheduling parameters are not able to calculate it.



Thank you beforhand!

1 ACCEPTED SOLUTION

Solution
Ricardo Lopez
Booster

Hi Jii,

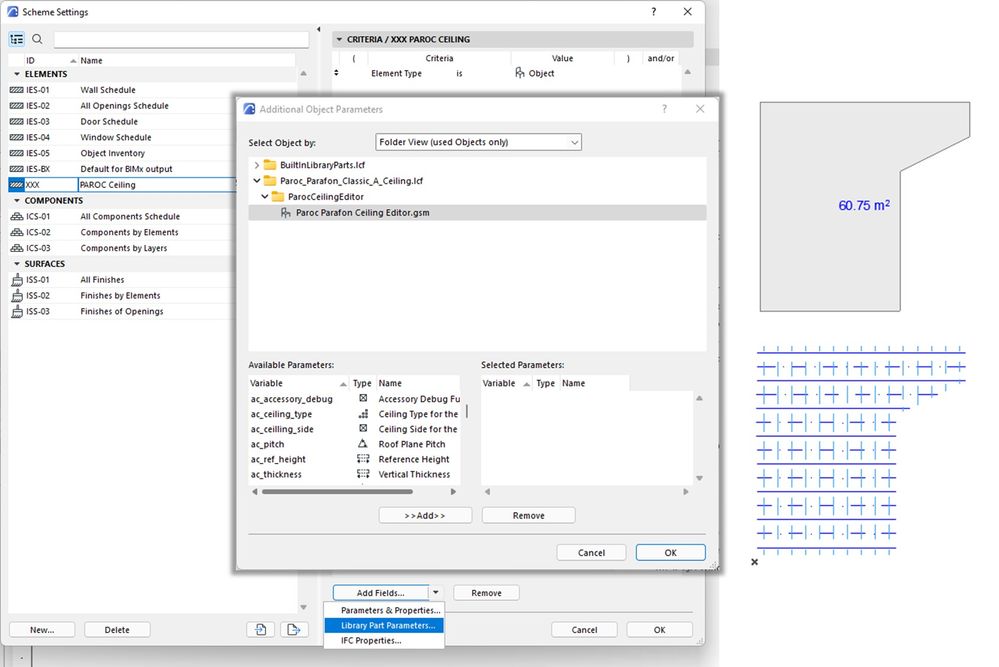

Normally this kind of objects have their own parameters and they can be selected from Add Fields...> Library Part Parameters... where you can select the object and the available parameters for your scheme. Sadly Absorbing surface for this one is a calculated value to be displayed in the object settings dialog. We cannot even check how it was calculated because its GDL code is partially blocked.

A simple workaround could be using the fill tool and Show Area Text.

ARQ. RICARDO LÓPEZ
Project Solutions and Services
rlopez@projectser.com | www.projectser.com | +507 399-2994
Ave. La Amistad, El Dorado. Ciudad de Panamá, Panamá

View solution in original post

2 REPLIES 2

Solution
Ricardo Lopez
Booster

Hi Jii,

Normally this kind of objects have their own parameters and they can be selected from Add Fields...> Library Part Parameters... where you can select the object and the available parameters for your scheme. Sadly Absorbing surface for this one is a calculated value to be displayed in the object settings dialog. We cannot even check how it was calculated because its GDL code is partially blocked.

A simple workaround could be using the fill tool and Show Area Text.

ARQ. RICARDO LÓPEZ
Project Solutions and Services
rlopez@projectser.com | www.projectser.com | +507 399-2994
Ave. La Amistad, El Dorado. Ciudad de Panamá, Panamá

Thank you very much for clearing this out for me. Paroc have a nice object but missing very important part.

I also found an area parameter that shows ceiling area from ceiling made by: ceiling editor INT_v2.01. Sadly this object doesn't work properly. However I can make ceiling whit it and get area in my schedule.



Thank you and have a nice week!
