Ci Doors / Windows - Scheduling specific parameters

Vincent G_
Enthusiast

Hello,

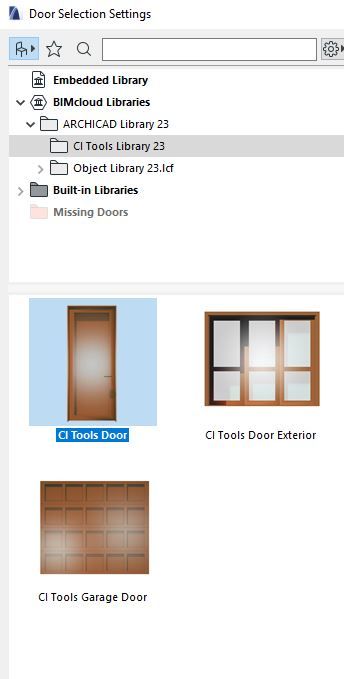

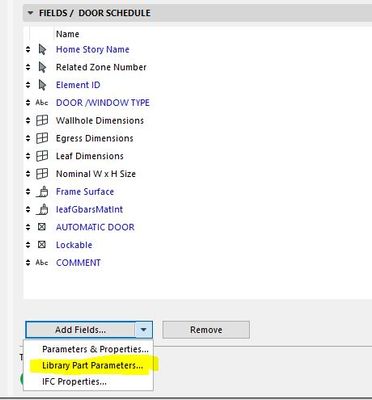

I've been using Ci doors and windows on a project I'm working on for two main reasons. First being the flexibility in term of customisation, but the main one being one single object for all doors, one single object for all windows allowing me to BIM schedule specific parameters for one door object (such as frame or leaf finishes, panel undercut etc)  and create IFC props based on library part parameter so I can BIM-Tag my openings surfaces in elevations.


I'm having some trouble to find some of the parameter I want to schedule and I was wondering if anyone had enough knowledge of these Ci items to help me identify them.


- Panel undercut - Ci Doors

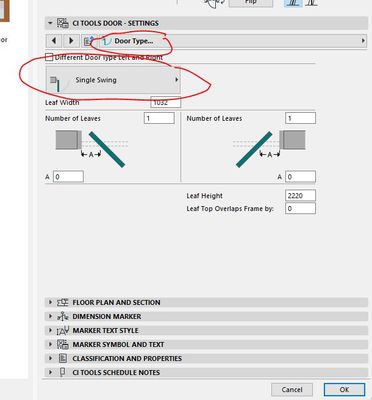

- Door / window opening type (hinged, sliding, pocket, Top hung,...) - Ci doors and windows

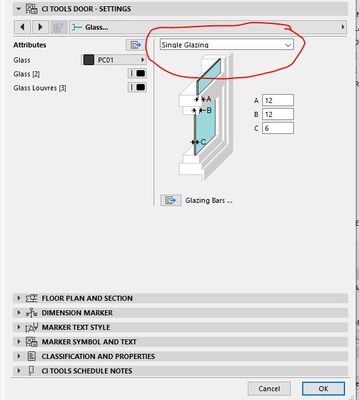

- Glazing type (single, double triple) - Ci Door & Win
Typical for windows, and doors in case of a metal frame + glazing for the panel




If anyone managed to identify these parameter and could share the names with me that would be fantastic!

0 REPLIES 0
