How do I hide section lines on print layouts?

yimyammer
Booster

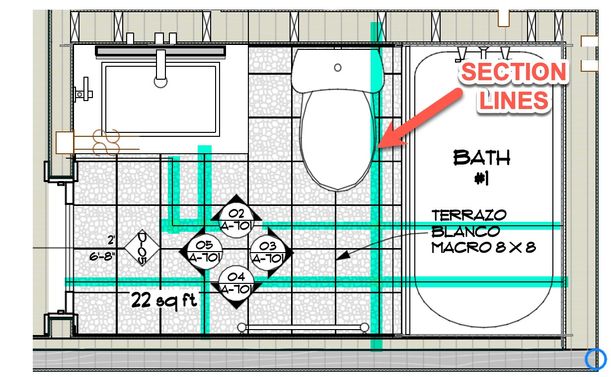

I'm sure its a simple button click or setting but I cant find it to save my life.  I want to turn off the section lines so it shows the marker only, see image to see how my floor plan prints out showing the section lines I want to hide on the print




6 REPLIES 6

Mahmoud Qenawi
Advisor

I see the two vertical lines are for tiling and the second horizontal is for dimension only the first horizontal line maybe for section so you can eliminate from displaying by non-checking the boxes for segmented line :




Lingwisyer
Legend

If those are from your building sections, I would just turn off their layer in your interior layouts combination.



Ling.

AC22-23 AUS 7000
Self-taught, bend it till it breaks.
Win10 | R5 2600 | 16GB | GTX1660

Creating a Thread
Help Those Help You - Add a Signature

Barry Kelly
Moderator

Set the section line to be 'Segmented' rather than 'Continuous' in the settings.

Then set the segment line length to 0 (zero).



Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

yimyammer
Booster

thank you, that seemed to do the trick.  I dont recall ever having to do this in the past and thought there was some setting that worked like a filter that would turn the lines off in print layouts but I guess I dreamed that up

The 'range' lines (sides and rear extent) can be turned on/off with an 'On Screen Display Option'.

But those lines won't print anyway, even if you do leave them on.



Elevation markers don't have the lines like the section markers do.

They just have the marker, either single in the centre or one at each end (that can be individually turned on/off).



Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

The lines printed for me which is what caused me to start this thread.  The picture I posted was a screen capture from the PDF print
