walls not joining

onestoreyllc
Participant

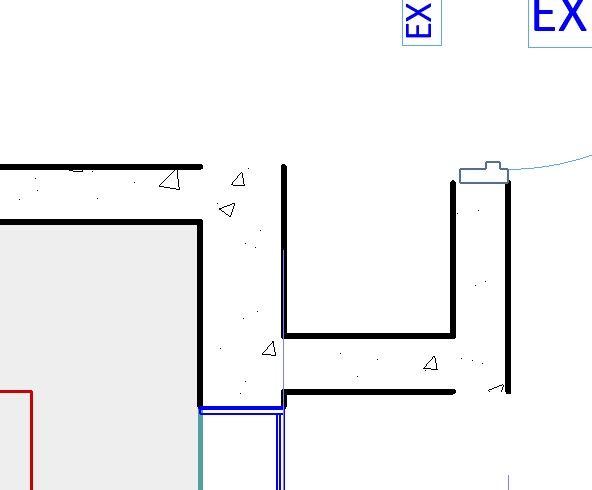

I've reviewed all of the same topics here but none of the remedies worked for me.  I can't get two of the same walls to connect with a solid line at the perimeter.  It's driving me crazy, help!



Screenshot 2021-09-15 121426.jpg

1 ACCEPTED SOLUTION

Solution
Barry Kelly
Moderator

It has been discussed here a few times, but it is a matter of finding the correct post.

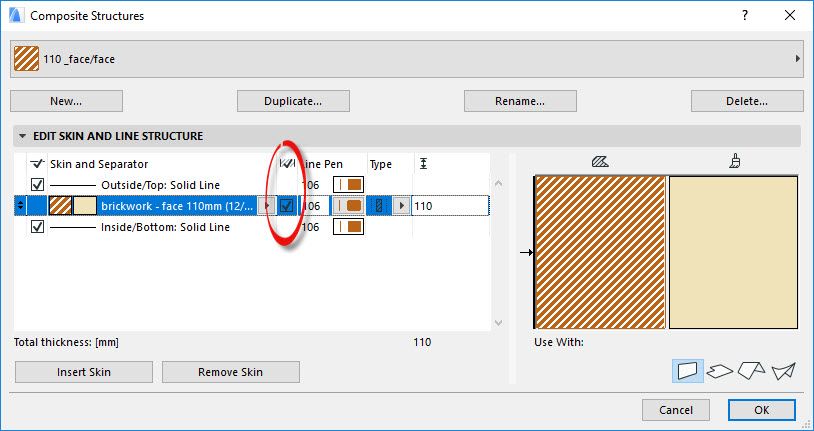

What you need to do is turn on the end lines of the skin in the complex profile settings.







One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

View solution in original post

5 REPLIES 5

Solution
Barry Kelly
Moderator

It has been discussed here a few times, but it is a matter of finding the correct post.



What you need to do is turn on the end lines of the skin in the complex profile settings.







One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

View solution in original post

Thanks for the response, that worked and is much appreciated.







Rajesh Patil
Enthusiast

Try this, Select required  walls and check if there both ends are displayed in "display wall ends" settings in 2D plan section  rollout in "Wall Selection Settings" dialog.

Rajesh Patil
AC 09-25 | INT | WIN10 64
Dell Inspiron 7591, Core i9, 9880H 2.30GHz, 16.0GB, NVidia GeForce GTX1650, 4.0GB, SSD Internal 500GB, Dell SSD External 250GB

That setting will only affect the free standing wall end.

It won't affect the corner connections or the door/window opening edges.



Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

Rajesh Patil
Enthusiast

And how about the wall reference lines, are they intersecting in required manner? Also by looking at the screen shot I think you are using Wall Structure as Basic and not Composite, I am right?

Rajesh Patil
AC 09-25 | INT | WIN10 64
Dell Inspiron 7591, Core i9, 9880H 2.30GHz, 16.0GB, NVidia GeForce GTX1650, 4.0GB, SSD Internal 500GB, Dell SSD External 250GB
