A question about how to put slanted dimension lines.

LeeJaeYoung
Virtuoso

The object ramp.
I can't put the dimension line in no matter how hard I try
I had to draw a line with a line and put a dimension line in that line.
Is this the answer?











AC27 on window 11
2 REPLIES 2
Barry Kelly
Moderator

You don't need to draw the line, use snap guides instead.

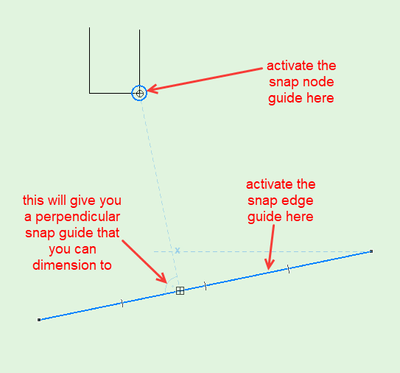

Before you try to place the dimension, activate the snap node on the corner or the beam and the snap line on the edge of the ramp.

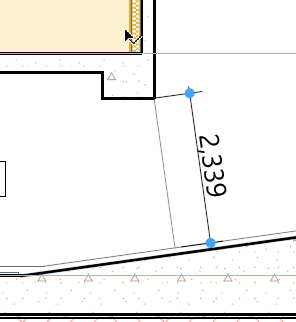

This will then give you a perpendicular snap guide that you can dimension.









It is similar to placing a line but it is temporary and the guides will disappear automatically when you complete the dimension.



Or you could place a permanent guide segment (the orange guide lines) from the beam perpendicular to the slab.

This guide will remain until you delete it (but it won't print).



Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

thank you. ^^
This part seems to be the part I need to study and practice. ^^
