Dimensioning issues in AC 28

Bob Moore · 2 hours ago

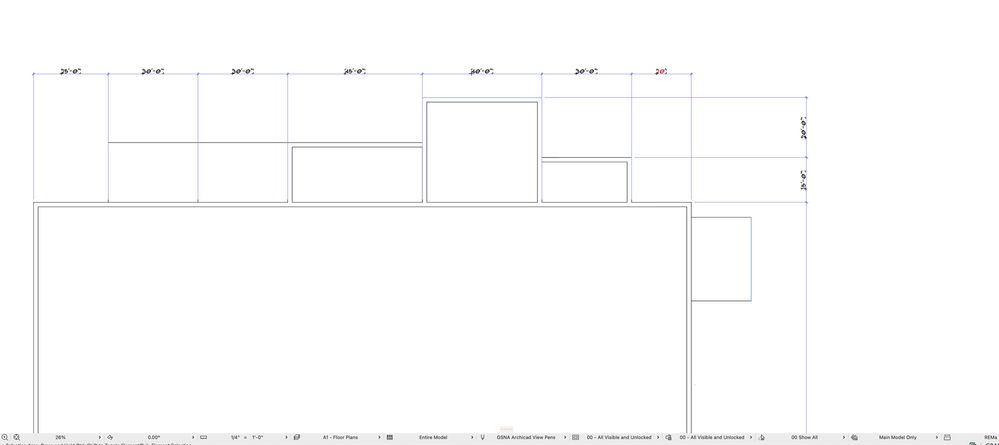

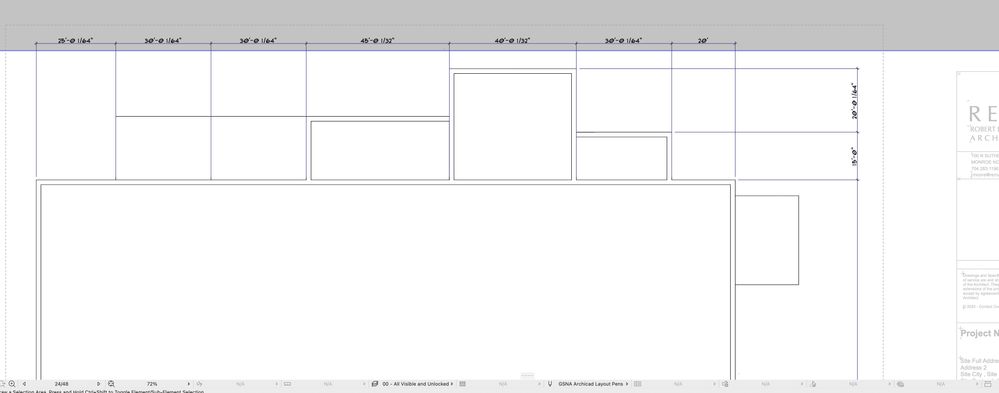

Having an issue with dimensioning in AC 28. Figure 1 shows the floor plan with nice even dimensions. Figure 2 shows the plot with dimensions down to 1/64 an inch. Why would AC change them? All the dimension preferences match.

Operating system used: Mac Intel-based Sonoma 14.6.1

AC 7 - 27

iMac 27"

Mac OS Sonoma 14.0

3.1 GHz 6-Core Intel Core

32 GB 2667 MHz DDR4

Radeon Pro 575X 4 GB

Mahmoud Qenawi · 2 hours ago

I suppose that the first shot is coming from project map & the other is coming from view map so you only need to adjust the view settings including Dimensions.

AC 28 INT 3001/WIN 11
AMD Ryzen 7 5800H with Radeon Graphics 3.20 GHz 16.0 GB

Jeff Thompson · 2 hours ago

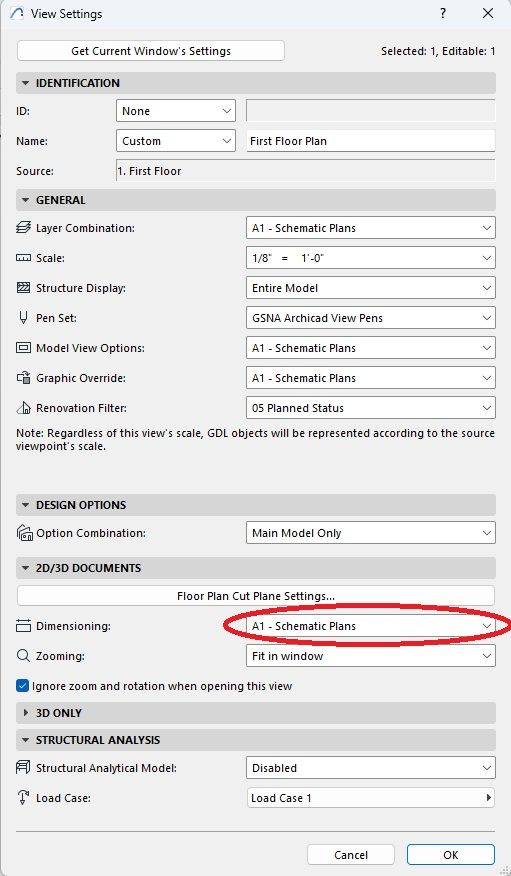

Looks like you have the wrong dimension style saved in your view settings of that floor plan view after you've placed it on your layout.

Project Manager
Rutledge Maul Architects, PS Inc., Seattle, WA
Windows 11 Pro, HP Desktop, Intel(R) Core(TM) i7-8700 CPU @ 3.20GHz 3.19 GHz, 32.0 GB RAM, 64-bit operating system.
Archicad 28 - Graphisoft Forward
