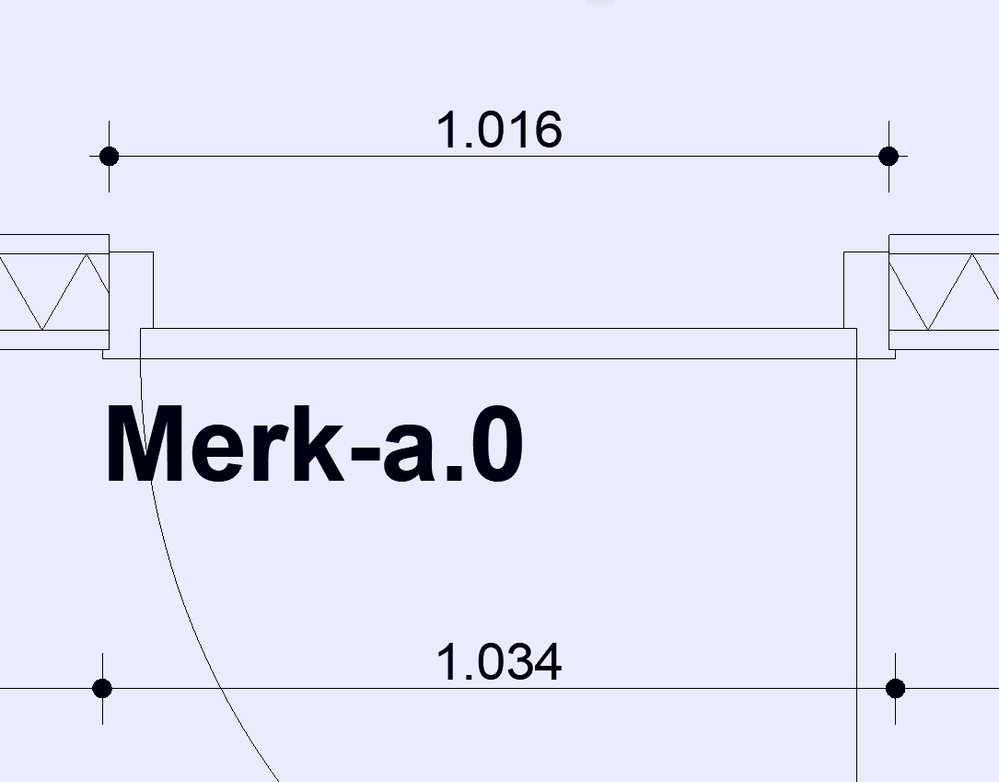

With which setting do I achive this story-view of my doorframe in the wall?
So I've got a wallopening of 1016 mm. and a doorframe of 1034 mm.
Greetings
2022-03-18 09:06 AM - edited 2022-03-18 09:06 AM
Hi @Dontknow , on the view right click and go to view settings then go to 2D/3D Documents section and feel happy to change dimensioning system.
2022-03-20 08:18 PM
No, it's not about the dimensioning system.
How do I place a doorframe with a width off 1034 mm which gives a wallopening of 1016 mm.
2022-03-20 10:17 PM
I think this screenshot can help you get the desired result, these settings are almost the same for doors and windows.
2022-03-21 02:27 AM
Why has this post been split?
Could you just work with a Casing? Not sure how those dimension...
AC22-23 AUS 7000 | Help Those Help You - Add a Signature |
Self-taught, bend it till it breaks | Creating a Thread |
Win11 | i9 10850K | 64GB | RX6600 | Win10 | R5 2600 | 16GB | GTX1660 |
2022-03-21 02:42 AM
@Lingwisyer wrote:
Why has this post been split?
I was wondering that myself.
I assume one of the moderators went to move the post but moved a reply instead of the whole post.
I have merged back together and moved to whole post to document & visualise.
Barry.
