Hiding Detail / Worksheet Boundary Line

scottjm
Advisor

Hi All,



When creating a detail or a worksheet from a floorplan, a dashed boundary line is placed at the marker range boundary.

I swear I had seen an option in the past to turn this off, but can't find it.  Was I imagining this?



I can't even see what settings actually dictate the boundary line being drawn to be able preset it as a white or invisible linetype.



We are using worksheet to create room layouts (about 100-200), and the addition of that line is affecting the visual output of the drawing, so needs to be removed (refer snip below).  We currently doing it manually, but it's a massive timesink as it keeps adding it everytime we rebuild from source.

I attempted to use a GO to hide it, but it seems GO's don't actually play properly with details or worksheets. 🤦‍♂️



Thanks,

Scott






Scott J. Moore | Fulton Trotter Architects | BIM Manager, Associate, Architect
Since AC13 | Current versions AC23.7000 & AC26.5002 | BIMCloud Basic | Python, GDL, VBA, PHP, SQL, CSS
Certified Graphisoft BIM Manger (2022)
Win 10, i9-9900K, 32GB, Quadro P2200, 500GB NVMe
10 REPLIES 10
Barry Kelly
Moderator

I never use worksheets or details (very rarely), but I am sure there used to be a setting in the tool to turn that boundary line on or off.

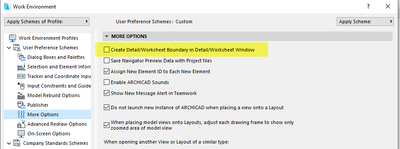

Seems now it is in the Work Environment.

Maybe it was there all the time and not actually in the tool settings.






This will affect new worksheets/details that you place.

Existing ones you will have to 're-build from source view'



Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
scottjm
Advisor

Thanks so much Barry!

🤦‍  I would say why didn't I think of looking there, but to be honest, it's feel like it's quite an arbitrary location for that setting!



I went on a mission to find out when they moved it.  I only have access to workspace back to 15 and the setting is in there.  Maybe I did imagine it...



Thanks again! 😊

Scott J. Moore | Fulton Trotter Architects | BIM Manager, Associate, Architect
Since AC13 | Current versions AC23.7000 & AC26.5002 | BIMCloud Basic | Python, GDL, VBA, PHP, SQL, CSS
Certified Graphisoft BIM Manger (2022)
Win 10, i9-9900K, 32GB, Quadro P2200, 500GB NVMe
Laszlo Nagy
Community Admin
Community Admin

The reason this setting may be in the Work Environment Dialog is because Archicad program designers felt this is a setting specific to the user rather than a setting specific to the Project. I mean, the Work Environment stores settings the user sets to their own preference and that is how they want it to work in all Projects. If you think about it that way, I would say the Work Environment Dialog is its proper place (even if it is a bit hidden).

Loving Archicad since 1995 - Find Archicad Tips at x.com/laszlonagy
AMD Ryzen9 5900X CPU, 64 GB RAM 3600 MHz, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), Windows 10 PRO ENG, Ac20-Ac27

Can it not be in both places? Or have a link to that location???



There are many settings that are related but not in the same location, and yet we could have a small text that reminds you where to find it.


AC26
https://www.zendsign.fr/

This is the problem with AC generally, too many different UI location options for the same thing...

Any settings should occur once and be placed where you would expect to find it.

Apple iMac Intel i9 / macOS Sonoma / AC27UKI (most recent builds.. if they work)
