Masked Lines Appearing on Interior Elevation Layout

TKonen10
Newcomer

Hi Graphisoft Community,



When I draw Interior Elevations I use a marker to frame my view, and then mask the unwanted geometry and lines with a solid fill. When I place my view onto a layout, I crop the drawing to show one single line around the perimeter of the interior walls. I have come across this issue numerous times...when I plot an interior elevation layout, I have lines appear around the cropped view. Was curious to know if anyone else has come across this. Please see the screenshot.



Thanks!Screenshot 2023-09-25 at 12.06.07 PM.png

1 REPLY 1

Gerry Leonor
Advisor

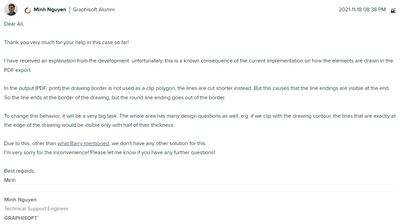

looks very similar to my query a couple of years ago:



https://community.graphisoft.com/t5/Documentation/Protruding-Dots-at-Drawing-Boundaries/td-p/313299



TL;DR, it's a PDF exporting issue & they won't be doing anything to it (unless they have in the last 2yrs in the newer versions???):




AC25 | Win10 | 64 bit | 16Gb RAM |Intel i7 8700 @ 3.20Ghz
