How to Explore Model in 3D Using Remote Desktop Applications

Mate Marozsan
Graphisoft Alumni
Graphisoft Alumni

Note:

This feature is only available in Archicad 23 Update 5003 and above.

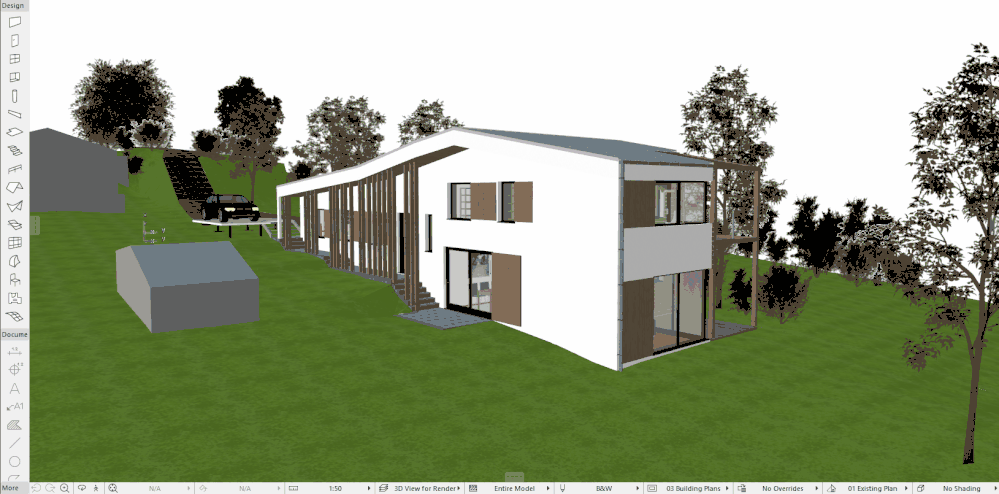

A new 3D navigation mode called Joystick has been introduced in Archicad to make the Explore Model function via remote desktop applications possible and easy to use.

In Perspective views only, you can explore the model either by choosing the View > Explore Model command or access the same command from a 3D toolbar, or from the Quick Options Bar at the bottom of the 3D window.


Now two options (F: Fly, J: Joystick) are available  in the Explore Model mode.


Note that the operation of the this feature is different by operating systems:



WindowsmacOS

Click on the "F: Fly" button to select the Fly mode
Click on the "J: Joystick" to select the Joystick mode
Press "F" key to select the Fly mode
Press "J" key to select the Joystick mode

Press "F" key to select the Fly mode
Press "J" key to select the Joystick mode



To navigate on a remote machine, use the the mouse moving the joystick on the right hand side and the arrow keys of the keyboard for navigation.



This feature  was part of a usability improvement to make it possible to navigate reliably using the Explore Model function via remote desktop applications.

Note:

Fly mode is only usable on a local machine. For remote connections use the Joystick mode.



Example remote desktop applications:

  • Microsoft Remote Desktop
  • Remote Desktop Connection (RDP)
  • TeamViewer
  • Chrome Remote Desktop
  • VNC

When in this mode, you cannot edit the model or use any of the commands.

To exit Explore mode hit Esc or click on the left mouse button.
