Double splayed reveal

Bruce
Advisor

‎2017-07-28 02:09 AM - last edited on ‎2023-05-24 10:00 AM by Graphisoft

‎2017-07-28 02:09 AM
Does anyone know a way (using the standard ArchiCAD library) to create a double splayed reveal for a door?

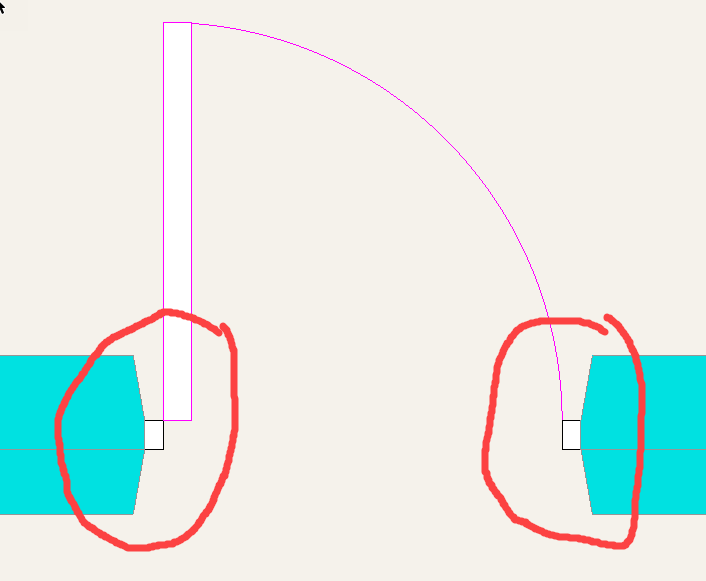

The way I have created the reveal in the attached picture, is by placing walls back to back, and using an empty opening in one of the walls to create the second reveal.

Bruce Walker
www.brucepwalker.com
Barking Dog BIM YouTube
Mindmeister Mindmap
-- since v8.1 --
AC27 5003 INT Full | Windows 11 64 Pro | 12th Gen Intel i7-12700H 2.30 GHz | 64 Gb RAM | NVIDIA GeForce RTX 3060 32 Gb
Labels:
0 Likes
1 REPLY 1
Bruce
Advisor

‎2017-07-31 12:15 AM

‎2017-07-31 12:15 AM
Hmm, I didn't think so.

I further figured out that you don't need to have two walls - just one wall with two coincident doors.
