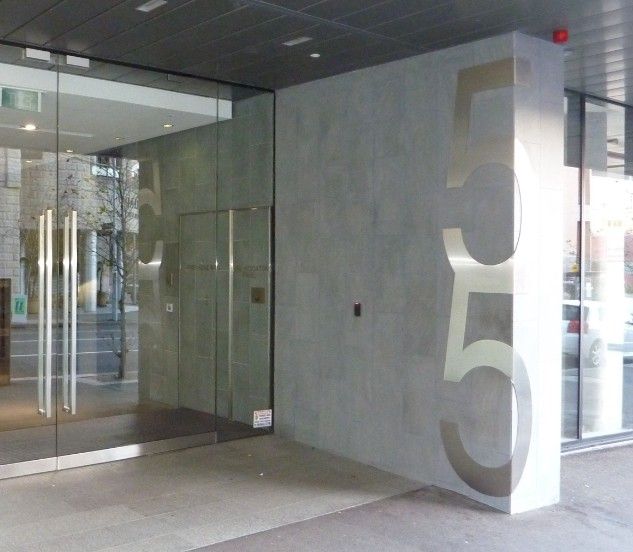

im having a problem with creating 3d txt( 55 on a wall ), as on the pic...
how to create such a thingggg.... : @
4 REPLIES 4

Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2009-10-22 09:46 AM
2009-10-22
09:46 AM
Have you tried the 3D text object that comes in the standard Archicad library.
Object Library 13\1. BASIC LIBRARY 13\1.1 Furnishing 13\Decoration 13
Should be in a similar location in older libraries as well.
Barry.
Object Library 13\1. BASIC LIBRARY 13\1.1 Furnishing 13\Decoration 13
Should be in a similar location in older libraries as well.
Barry.
One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Anonymous
Not applicable
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2009-10-22 09:26 PM
2009-10-22
09:26 PM
To wrap around the corner, use two complex profiles, one for each face of the figure, then assign to a short wall or beam.
Anonymous
Not applicable
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2009-10-22 09:35 PM
2009-10-22
09:35 PM
What if you rotated a copy of the 3D text at the turning point, and then did solid element operations to subtract the overhanging edges?
Anonymous
Not applicable
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2009-10-22 10:04 PM
2009-10-22
10:04 PM
Both ideas are good (SEO or Complex Profiles). If you use the latter one, but do not want do draw the numbers, then follow these steps:
-Use object Text 3D
-Set Rotation (around x) to zero.
-Set 2d representation/Show view in 2D to on
-Write your number 5
-Explode the object into current view (ctrl+=)
-Paste elements in your complex profile
-Use object Text 3D
-Set Rotation (around x) to zero.
-Set 2d representation/Show view in 2D to on
-Write your number 5
-Explode the object into current view (ctrl+=)
-Paste elements in your complex profile
