imported RFA showing wrong angle

cocoloco
Expert

Hello!

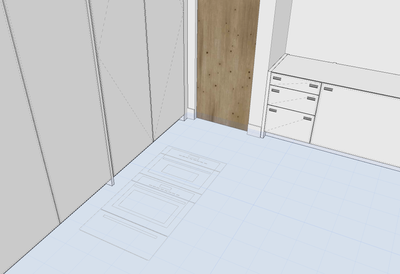

I think I clicked on some settings as it worked before, basically now all RFA files are importing in Elevation Front view instead of top View. Means that on floor plan where suppose to be top view showing, it is showing elevation product view.. I tried to set up different angles and rotate but nowhere I can find how to flip it completely so the object is showing from TOP on floor plan and as elevation in elevations. The standard archicad rotation is whether to left or right .



Funny pics attached for the attention! 😄  Thanks!



Screenshot 2024-10-27 at 3.19.28 PM.png

Screenshot 2024-10-27 at 3.19.35 PM.png



Operating system used: Mac Apple Silicon

MacBook Pro, Sonoma: 2.6 GHz 6-Core Intel Core i7, Intel 16GB mem,
Archicad Solo 26 and 27 (in testing mode)
1 REPLY 1
Barry Kelly
Moderator

There doesn't seem to be any settings before or as you import the object, so check the object settings to see if there is an option to rotate or use top view.



Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
