splayed window casing

Anonymous
Not applicable

‎2017-09-28 10:54 PM - last edited on ‎2023-05-24 12:28 PM by Graphisoft

‎2017-09-28 10:54 PM
Hello,

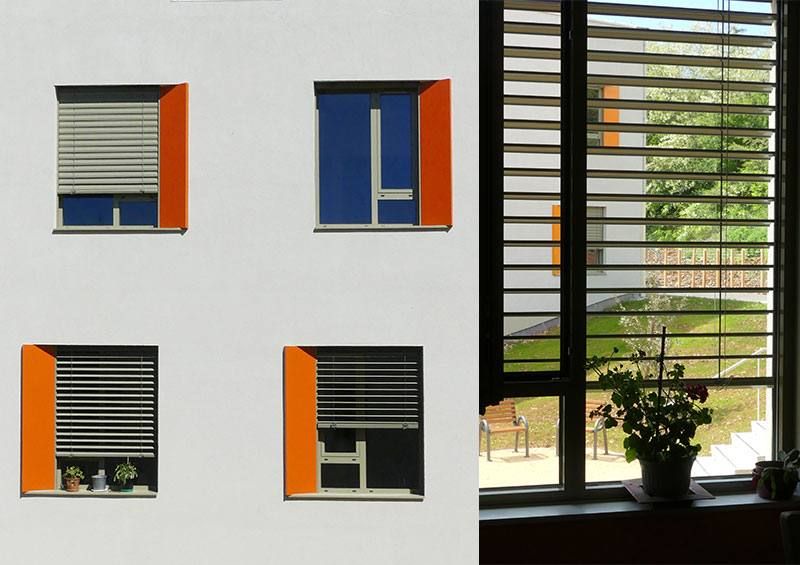

does anyone know a smart way to model a window like this ?
I mean I’m interested in casing that is splayed only at one side and I’d like to be able to change its colour separately

Thanks

Labels:
0 Likes
1 REPLY 1
Laszlo Nagy
Community Admin
Community Admin

‎2017-09-30 10:53 PM

‎2017-09-30 10:53 PM
The Reveal options of Windows usually offer a Splayed Reveal. See attached image.
That vertical board: I would model that separately using the Morph tool.
Loving Archicad since 1995 - Find Archicad Tips at x.com/laszlonagy
