ACAD 15 - Cut Fill on Plan - Origin

Anonymous · ‎2012-03-03

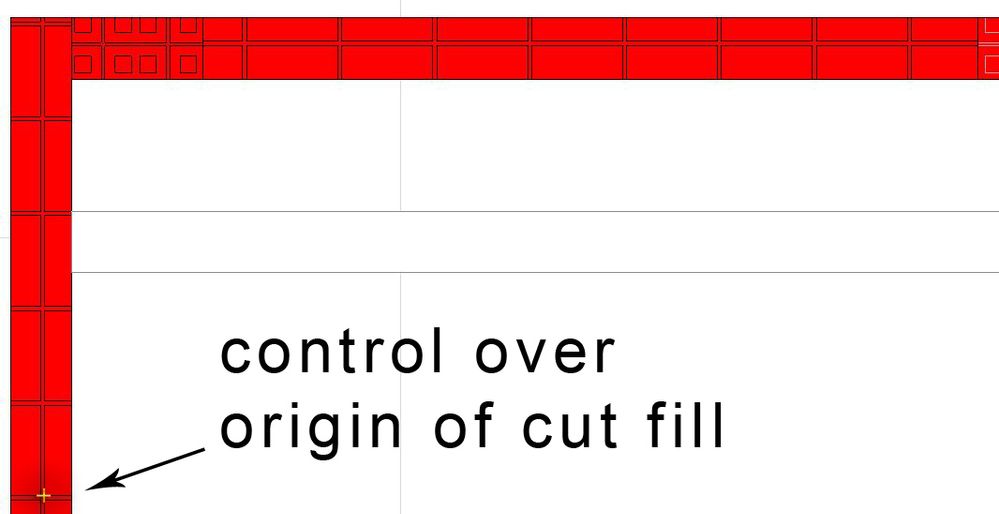

How does one cotrol the origin of the cut fill as displayed on Plan? I want to be able to show individual bricks on plan. See attached:
Any suggestions welcome.

Erika Epstein · ‎2012-03-03

Zak,

Your link isn't working. Alternatively you can add a screen shot as an attachment to your post, see the bottom of the page.

Erika
Architect, Consultant
MacBook Pro Retina, 15-inch Yosemite 2.8 GHz Intel Core i7 16 GB 1600 MHz DDR3
Mac OSX 10.11.1
AC5-18
Onuma System

"Implementing Successful Building Information Modeling"

Karl Ottenstein · ‎2012-03-04

[Sorry Erika/Zak- that was my fault. Zak double-posted but did originally post the screenshot properly, and I deleted the duplicate... but that apparently deleted the shared screenshot.... Karl/Moderator-hat-on]

Vote for Wish: Copy/Paste in 3D

AC 29 USA and earlier • hardware key • macOS Taho 26.1 MacBook Pro M2 Max 12CPU/30GPU cores, 32GB

Anonymous · ‎2012-03-04

Thanks... fixed it. Any genius answer yet?

Anonymous · ‎2012-05-24

Hi... As I'm not a master in archicad ... I'm not sure its the best way or not ! but you can make a detail or worksheet of your section which you draw and then select the cut fill , change the " construction method " in Fill selection Setting From " Relative to the project Origin " to " relative to the fill origin " then change the Origin Of your fill brick.

hamedkassaei
