ARCHICAD 20 Update 6005 Released

Csaba Kezer
Graphisoft
Graphisoft
Hi All,


Today we have started to publicly release the next Update of ARCHICAD 20. This Update has been available as a preview version already and based on the feedback of the preview period we have slightly modified the Manager component of the server update packages.

The Update is already available for the AUS, AUT, GER, INT, NZE, UKI and USA versions, and will be followed by the rest of the language versions as soon as they pass our Quality Control. You can read the Release Notes and download the packages from our download sites:
- ARCHICAD 20 Update 6005 & BIM Server 20 Update 6022
- BIMcloud Manager 20 Update 6022 & BIMcloud Server/Delta Cache 20 Update 6006

BIMcloud Multiversion compatibility
This ARCHICAD 20 6005 Update along with the ARCHICAD 19 9001 Update enables ARCHICAD 19 and 20 to be compatible with the Multiversion BIMcloud, introduced with version 21.

Grasshopper Connection Add-On compatibility
With this new Update of ARCHICAD 20 we are introducing changes that needs a new, compatible Grasshopper-ARCHICAD 20 Live Connection as well. You can download this new Add-On from our
Rhino-Grasshopper download site. Beware that this new Grasshopper Add-On is only compatible with the new 6005 ARCHICAD Update and not with the previous ones.

Best regards,
Csaba Kézér
Director, Global Customer Support
Graphisoft
23 REPLIES 23
Ben Cohen
Enthusiast
Hi Csaba

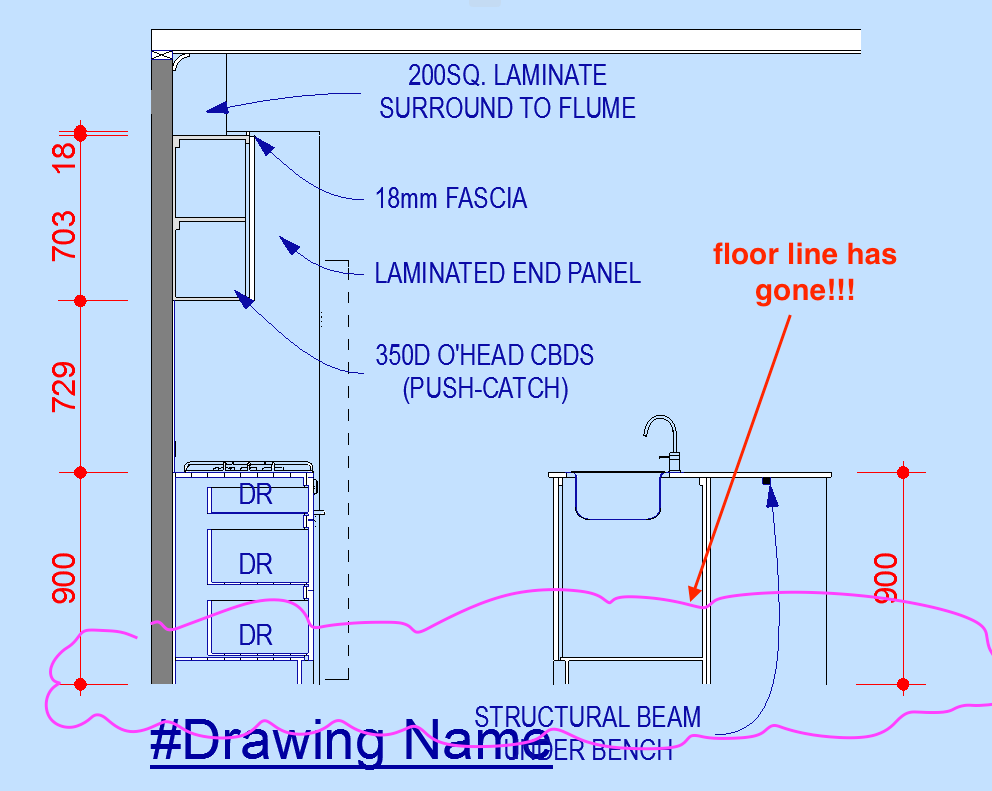

We have found a serious bug in 6005 (Windows). The floor line of all our internal elevations (using the elevation tool) has disappeared in all projects. We are going to roll back to the previous hotfix if there is no 'easy' solution to this issue.
