Aligned axonometric views with consistent cutting plane in CineRender

[#1]

Aligned axonometric views are often required for consistent visual output across multiple floor levels, especially when preparing rendered images. This article describes a workflow that ensures consistent alignment when adjusting the 3D cut plane.

Issue description

When modifying the height of the 3D cut plane in axonometric views, alignment between floors may become inconsistent. This can result in shifted or mismatched perspectives when generating multiple views for visualization or rendering.

Solution

A controlled workflow using section viewpoints allows precise adjustment of the cutting plane while preserving the original axonometric projection.

Solution steps

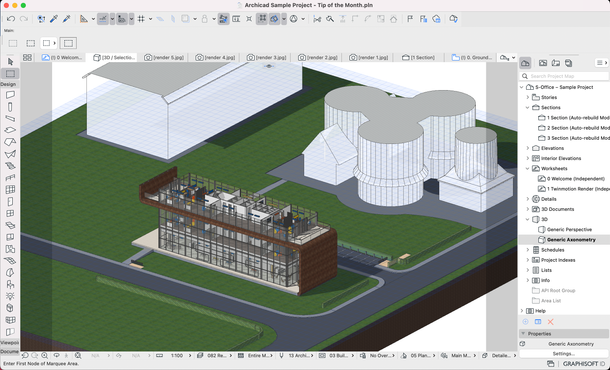

1. Activate a saved view in the 3D window and configure the desired axonometric view.

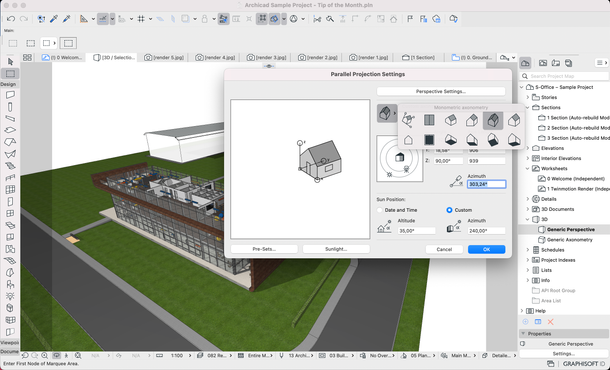

2. Switch to the Generic Axonometry viewpoint to retain projection settings.

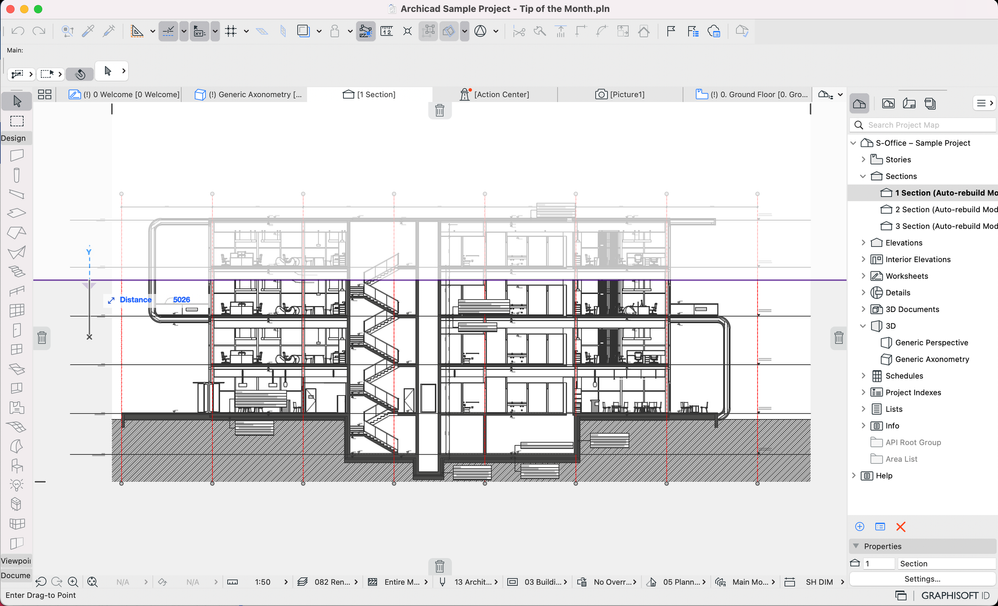

3. In a Section viewpoint, adjust the cutting plane height.

4. Return to the Generic Axonometry viewpoint. The updated cutting plane height is applied automatically.

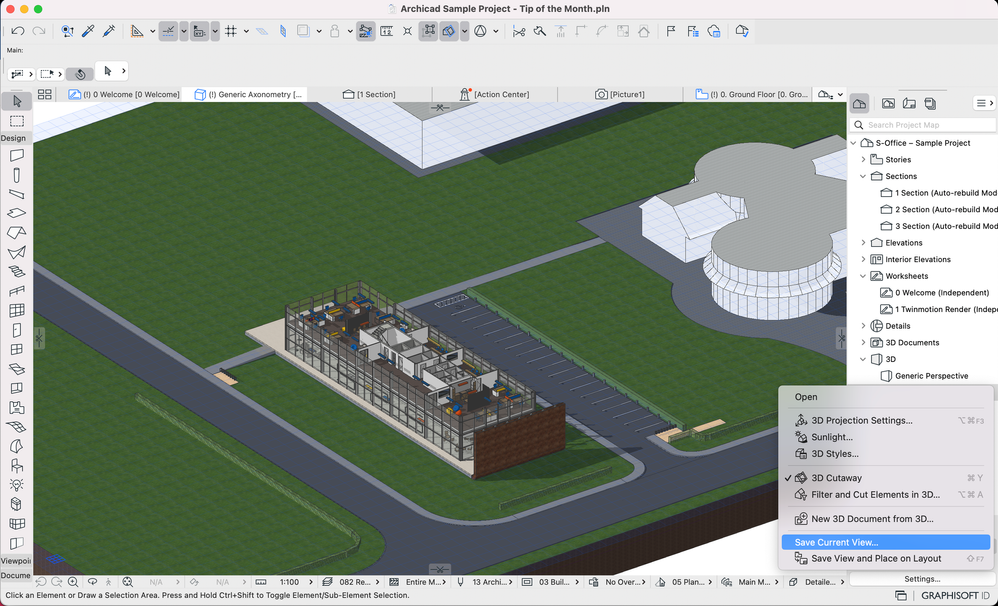

5. Save the view and repeat the process as needed for additional levels.

6. (Optional) Save the view for rendering in the PhotoRendering window.

Result

Consistent and aligned axonometric views are produced across multiple floor levels, enabling accurate and comparable CineRender outputs.

---

These techniques were originally shared by Community member @hevi. If you’d like to explore the original discussion, click here to read the full thread!

This article is part of the ‘Tip of the Month’ series on Graphisoft Insights, highlighting valuable community-driven solutions for modeling challenges. Try these methods in your next project and experience the difference in model quality and efficiency.
