Any tip as how to create multiple slabs in one go?

[Thomas Nymann]

Hi there.

I´m wondering whether theres a trick to create multiple Slabs, in 1 or at least a few actions... Lets say you have a .dwg showing a site with multplie (+50) building contours.

I those should be raises as Slabs (or morphs) - Do we then have a a neat trick to do it faster than manually using Magic Wand on each of the contours?

Kind regards

Thomas

Operating system used: Windows 27 Build 5001

[Barry Kelly]

If they are evenly spaced, you could multiply as an array.

Otherwise, magic wand is the fastest way.

Barry.

[Thomas Nymann]

Hi Barry.

Thanks for that quick reply 🙂

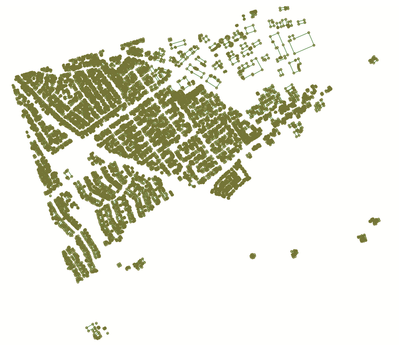

It´s (unfortunatly) a "City Scape"

[thesleepofreason]

Think Rhino is the way to go - if available. Either with the GH-AC connector which gives geometries as slabs/morphs or you can modell in Rhino and use Speckle to send it to AC which gives the geometries as objects.

[Yves]

Hi Thomas,

I made a small polyline accessory object to create hatching for this type of plan. I just added a 3D prism to it.

Simply select the polylines and use the Polyline Accessory function... the objects are then placed according to the contours of the polylines

In the French version Menu Drawing - Drawing extras - Accessories - Polyline accessories

[Thomas Nymann]

Hi  Yves.

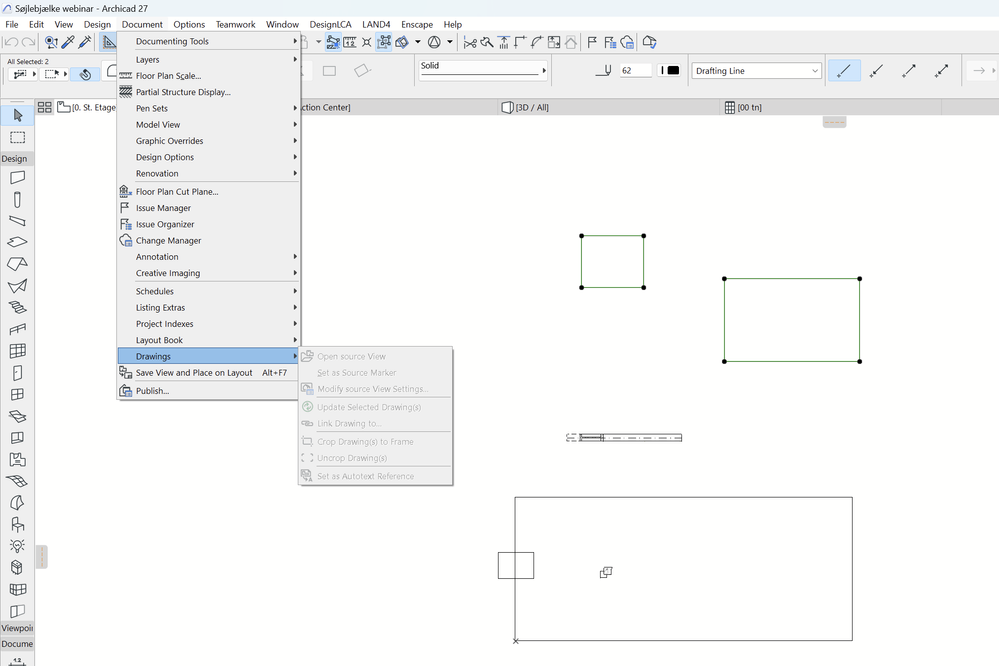

This sounds very helpfull indeed.  However, Im not sure how to make it work...  It´s an object, that can trace selected polylines...  But I can´t seem to find in the Document->Drawing Extras menu...

I´m I looking the wrong place? - Can´t seem to find anything related in the "Design Menu" as well!

[Xandros]

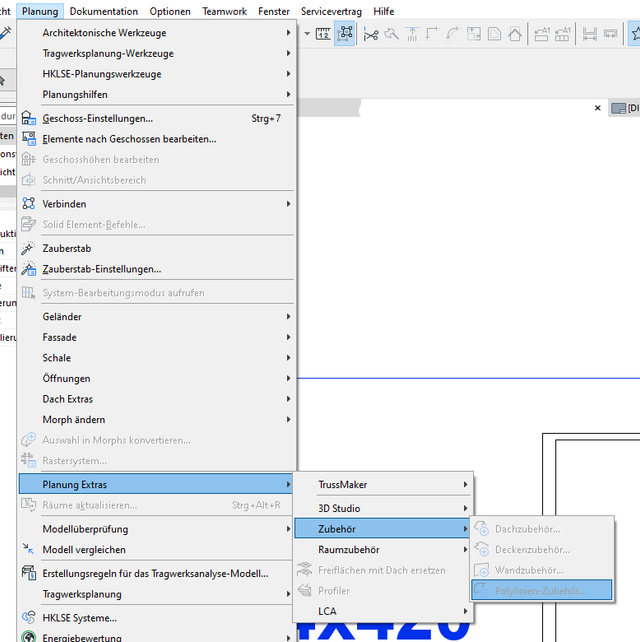

I believe it's this menu (screenshot from GER version)

[Yves]

I think that on your archicad it is in the Design menu (Called Drawing in French version)

[Thomas Nymann]

YES!. Thank you I got it 😉  You guys just made my day 😉

[Thomas Nymann]

Sorry for the confusion. I just made it work in AC 27 - does it work in previous versions as well... I tried out a couple of thing to make it work, but since this is a .gsm file. Then all you need is to upload it to Embedded Library, and then it works?
