BUG? Can't change curved wall Ref-Line Direction!

Anonymous
Not applicable
Hi'
The title is self explanatory,
In AC15, a curved wall's Reference Line direction
cannot be flipped!
Why is this important?
Well, for "shelling" two collections of "Space Traced"
curved walls!

H E L P !

Gil

5 REPLIES 5
Anonymous
Not applicable
Here we have two "Zero" Walls,
each on a separate story, and each,
unfortunately, going in a different direction...
Anonymous
Not applicable
As "Zero Walls" (0 Hight, 0 Thickness),
these two show up in 3D and can be useful
for ruled shelling
Anonymous
Not applicable
However,
because each is going in a different direction,
and this CAN"T be fixed, the result is erroneous!
GIL
Barry Kelly
Moderator
I was going to suggest you manually mirror the wall but that does not make any difference to the wall direction.

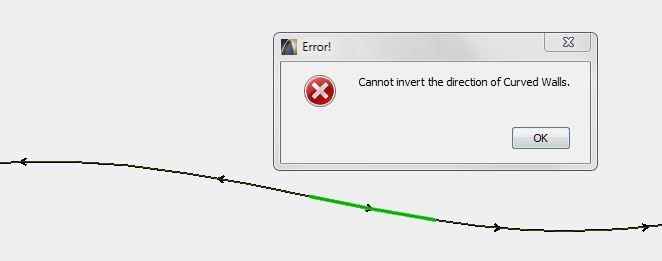

Even re-drawing the curve in the opposite direction doesn't work.
It seems curved walls always go clockwise.
Barry.
One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Barry Kelly
Moderator
The only way I can see to do this is to manually choose the points for the second profile rather than using the magic wand.
Barry.
One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
