Complex wall profile intersections

ajharlan · ‎2023-11-29

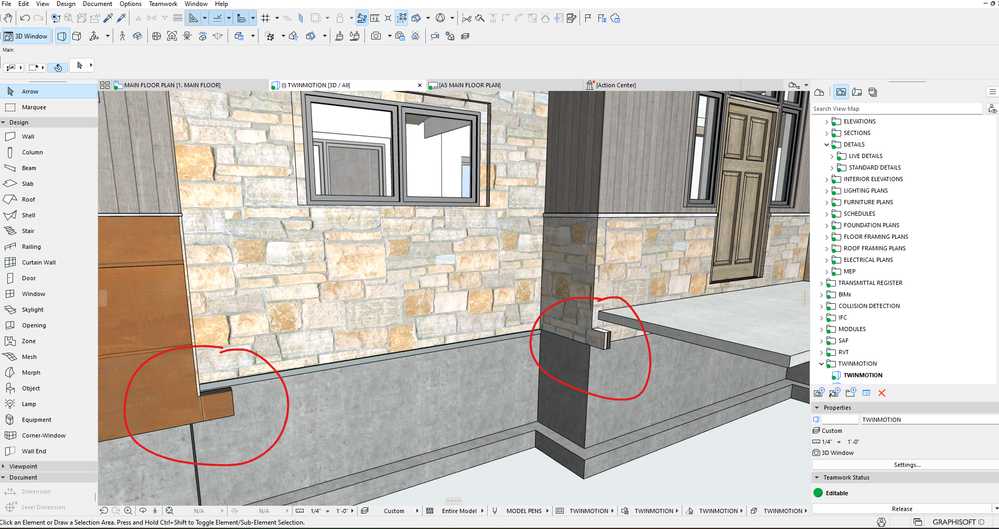

Has anyone experienced this interaction between two identical complex wall assemblies? I have tried adjusting intersection priorities, but the bottom of the wall assembly (where sheathing, mineral wool, and stone overlap the foundation) seems to not respond to those priorities?

Help?!?

Lingwisyer · ‎2023-11-29

This has popped up a few times... There are posts about it around here somewhere... Put your footing in a different Intersection Group. The issue is that they are trying to connect to your footing. Playing around with the Junction Order of your 4 walls at each instance can sometimes work.

https://community.graphisoft.com/t5/Modeling/Wall-quot-wings-quot/m-p/293426

AC22-29 AUS 3200	Help Those Help You - Add a Signature
Self-taught, bend it till it breaks	Creating a Thread
Win11 \| i9 10850K \| 64GB \| RX6600	Win11 \| R5 2600 \| 16GB \| GTX1660

Go to post

Lingwisyer · ‎2023-11-29

This has popped up a few times... There are posts about it around here somewhere... Put your footing in a different Intersection Group. The issue is that they are trying to connect to your footing. Playing around with the Junction Order of your 4 walls at each instance can sometimes work.

https://community.graphisoft.com/t5/Modeling/Wall-quot-wings-quot/m-p/293426

AC22-29 AUS 3200	Help Those Help You - Add a Signature
Self-taught, bend it till it breaks	Creating a Thread
Win11 \| i9 10850K \| 64GB \| RX6600	Win11 \| R5 2600 \| 16GB \| GTX1660

ajharlan · ‎2023-11-30

@Lingwisyer this worked like a charm, thank you!!
