Composite wall/Profile intersection

Houssam Kellache
Participant

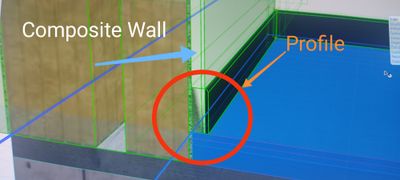

What's the best way t clean this wall so that profile wall can cut the composite wall. I tred PBC, layer intersection, wall junction and nothing seems to work.


2 REPLIES 2
mthd
Ace

Hi, did you also try making sure the reference lines of both walls meet or intersect on the outside faces of these walls ? I hope that works ?

AC8.1 - AC27 ARM AUS + CI Tools
Apple Mac Studio M1 Max Chip 10C CPU
24C GPU 7.8TF 32GB RAM OS Ventura
Barry Kelly
Moderator

I would simply make the base of the composite wall start at the top of the profiled wall.

That way, one sits on top of the other, and there is no need to intersect.



Or I would merger the composite and profile wall into a single profile wall.

You can even set up profile modifiers so you can adjust heights and widths of the components.
