Differense in behaviour of roof

Kamelite
Enthusiast

When I create a flat roof, and alter the angle in 3D, the change is reflected in the Roof Height and Pitch window.



But when I alter the gableheight of a gabled roof, using elevate ridges, it doesn't reflect the changes.



Bug or intended?



.Kamelite

Windows 10, Archicad 27
2 REPLIES 2
Barry Kelly
Moderator

By 'flat' roof I assume you mean a single plane roof.

They only have one surface and therefore only one pitch.



Multi-plane roofs can have any number of surfaces and only show the original pitch as it was created.

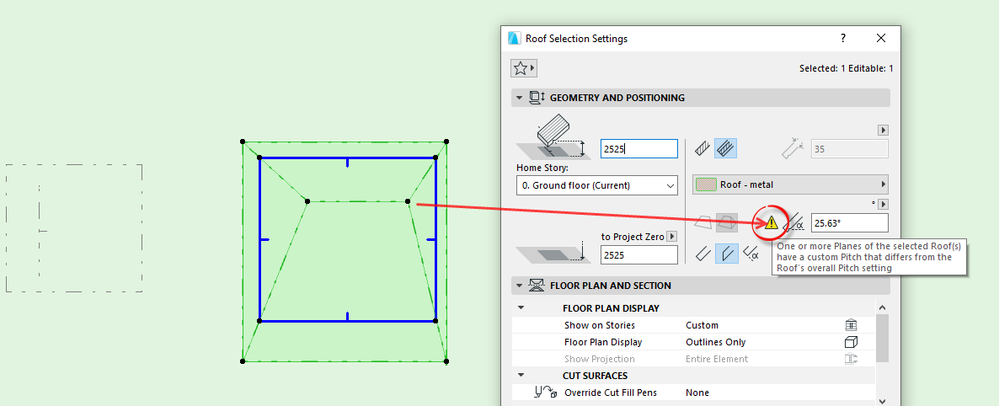

In the settings (not info box) you will a warning to say there are multiple pitches.

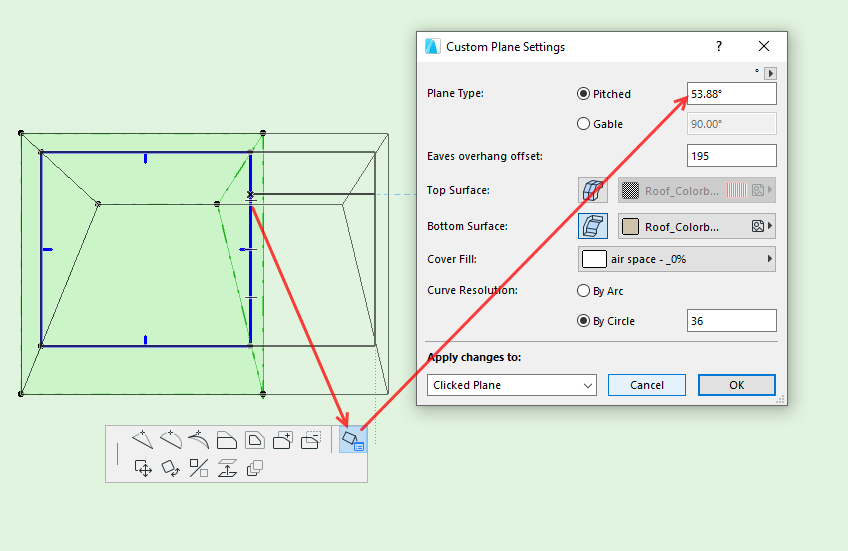

If you click on a pivot line of a multi=plane roof and go to the 'Custom planes' option in the pet palette, you will see the custom pitch.






Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

That makes sence. It never crossed my mind that I could do other things whith the gable than just elevate it!



.Kamelite

Windows 10, Archicad 27
