Doesn't the profiled beam combine with the slab?

LeeJaeYoung
Virtuoso

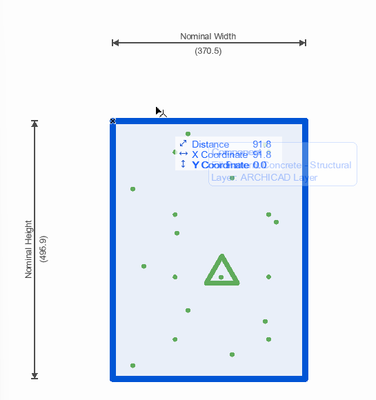

Doesn't the profiled beam combine with the slab?











AC27 on window 11
1 ACCEPTED SOLUTION

Accepted Solutions
Solution
Laszlo Nagy
Community Admin
Community Admin

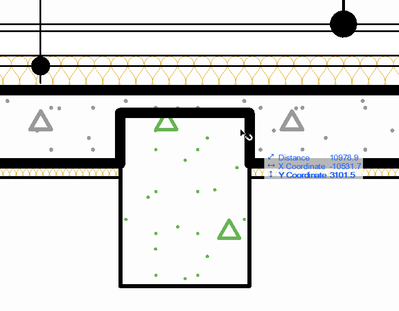

The connections of Beams and Slabs are generated automatically by Archicad. On your screenshot, you can see that the Beam cuts its geometry out of the Slab.

However, their Section Fills will merge (and that division line between them will disappear) only if they have the exact same Building Material. So right now, the Building Material of the Beam and the Building Material of the Slab's Core is probably not the same.
