Dome - shell

Anonymous · ‎2014-04-14

Hello there..
I'm trying to make a dome that its height doesn't equal its radius…

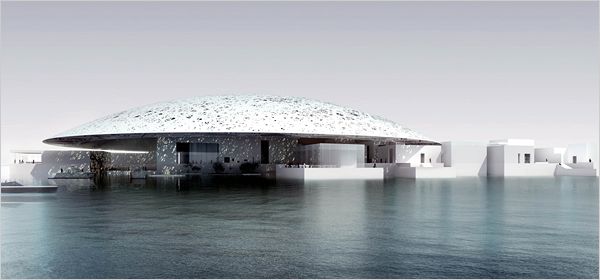

Something like this.. Any idea how?


Barry Kelly · ‎2014-04-14

Look at the 'Construction Method' buttons in the shell settings.
You can create a 'Simple' rotated shell (semi-circular dome) and then adjust the profile shape afterwards or you can create a 'Detailed" rotated shell where you can specify the profile shape that you want to rotate.

Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Anonymous · ‎2014-04-14

Thank you so much! that was helpful

Laszlo Nagy · ‎2014-04-14

Here is also a full playlist of Shell-related clips that tell you about all of its features and tips for creating them:

http://www.youtube.com/playlist?list=PL1CA38C58B1DCFE58

Loving Archicad since 1995 - Find Archicad Tips at x.com/laszlonagy
AMD Ryzen9 5900X CPU, 64 GB RAM 3600 MHz, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), Windows 10 PRO ENG, Ac20-Ac28
