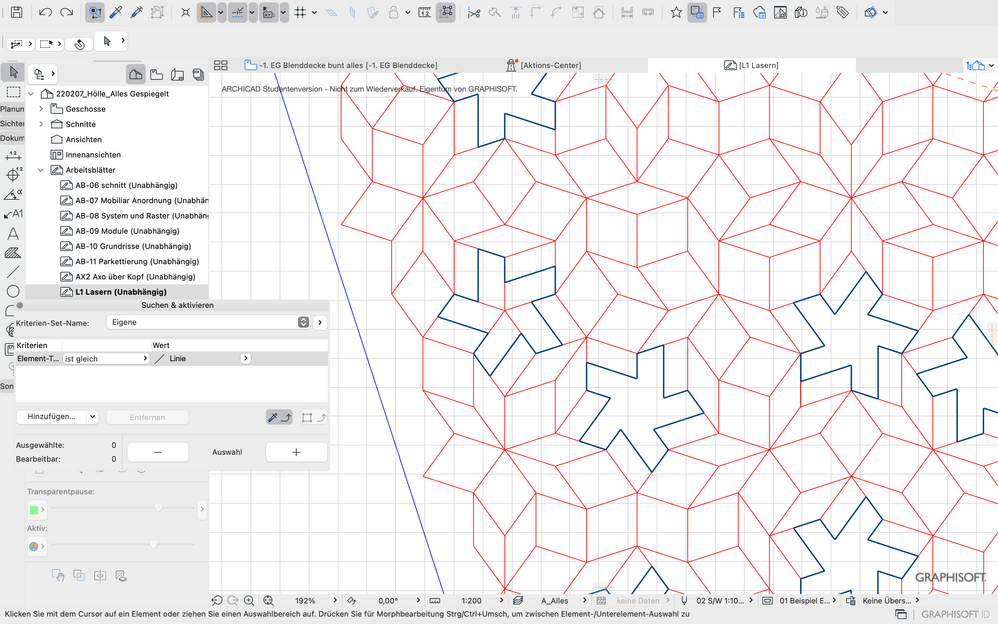

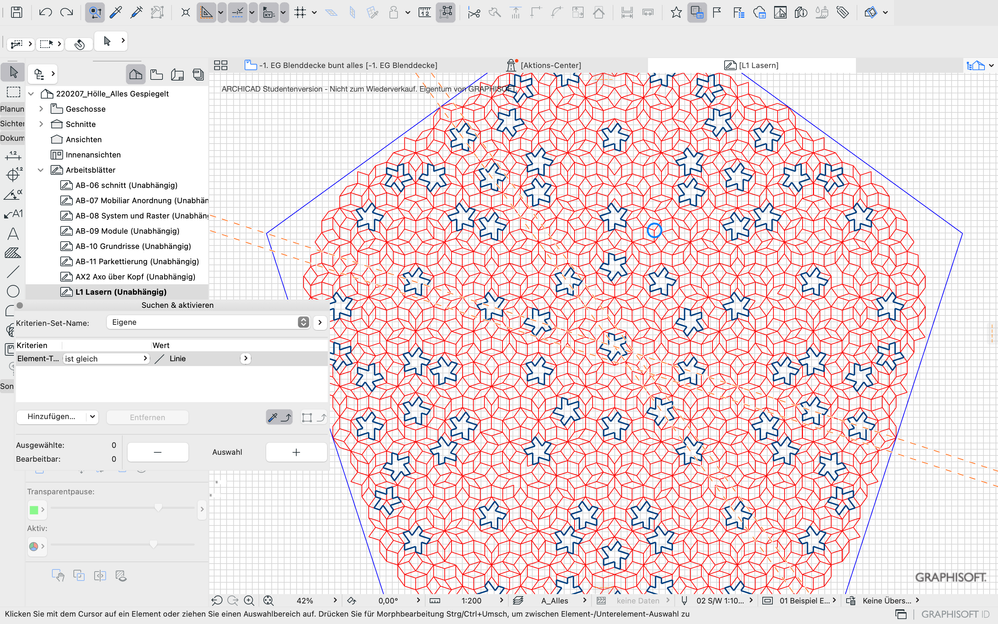

I want to delete all red lines that lie behind the white, blue-framed hatchings and I thought there must be a feature to do this in one step (like Linework Consolidation Setting or the similar one for hatching, something like the illustrator-pathfinder or even boolean operators) - but there is nothing and even the linework consolidation doesn't understand, that I JUST want the blue lines. Is there maybe a publisher function to not publish hidden lines into the PDF?
They can't overlap, because this is a file meant for a laser cutter and it has to be very precise.

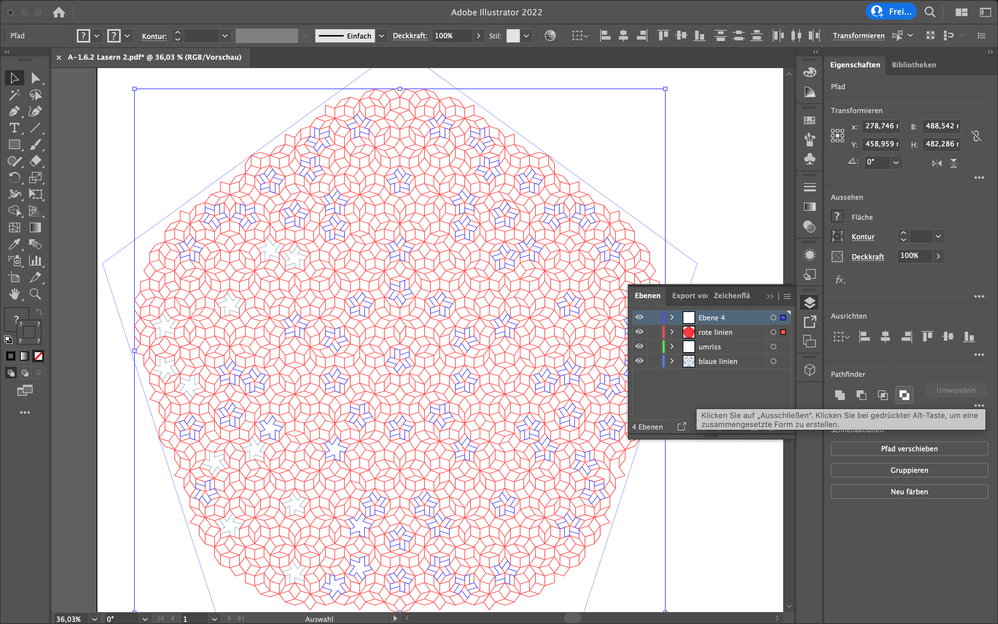

I also tried the pathfinder in Illustrator to use the hatching as a "cutter", but it also doesn't work, since it can only substract two things from another...
Has anyone a good tip?
Have a nice day/evening and thanks in advance 🙂
2022-02-09 11:37 AM
There's no "feature" as you describe it. It reminds me of the old "Cookie cutter" command in AutoCAD.
It doesn't look like a million of fills... have you tried Selecting all the Fills (fill tool/ctrl+A), then press and hold the Ctrl key as you click/trim the lines?
The only other trick I can think of - but have not tested it- is to print/publish to a vectorial format, just to bring it back and explode....
I know that's a trick to separate fills from their perimetral polylines....
Hope it helps
2022-02-09 12:52 PM
@Victoria Why don't you expand "Find & Select" e.g. add Pen Colour to the attributes to separate out the blue lines & then move them to a different layer? If they are an embedded (?) then as Nando suggests could you explode the shape (or a copy) and then extract the blue lines with F&S?
2022-02-12 03:57 PM
thank you for the tips, @DGSketcher , I want to keep the blue lines and delete the red ones underneath them.
@NandoMogollon , what do you mean by "then press and hold the Ctrl key as you click/trim the lines?"? I
