How to build a sloping wall like that?

LeeJaeYoung
Virtuoso

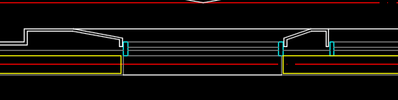

1. elevation

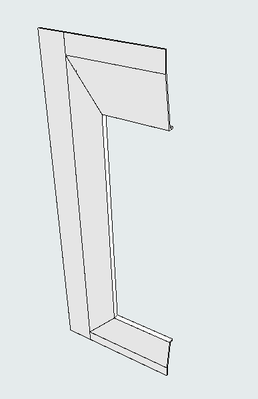

2. plan

AC27 on window 11
7 REPLIES 7
Patrick M
Advisor

something like this:

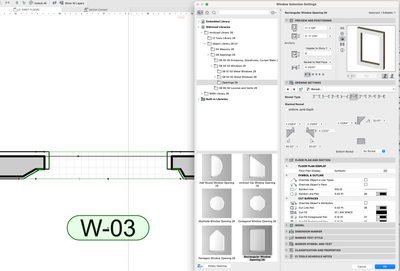

Screen Shot 2023-09-11 at 4.57.14 PM.png

BIM solutions and trouble shooting (self proclaimed) expert. Using Archicad 26 5002 US on Mac OS 11.5.2
Patrick M
Advisor

you can get the same opening on some windows, or you can just model them as 2 separeate windows; one for the unit, the other for the wall hole



BIM solutions and trouble shooting (self proclaimed) expert. Using Archicad 26 5002 US on Mac OS 11.5.2

Thank you for your interest.
I think it's a little different.
The structure was not changed, but the finishing wall was changed.

1. Don’t I need to separate the wall for this type of wall?
2. I think the key is how to connect the finished wall to the inwardly slanted lower part.



AC27 on window 11

Shouldn’t the finished wall and the structural wall be separated?

How should I build the wall?
The walls from the left and right and the walls from the top and bottom must be connected like this.
What should I use for the walls at the top and bottom to connect them like that?

AC27 on window 11
LeeJaeYoung
Virtuoso

스크린샷 2023-09-12 231048.png

All I know is how to morph something.
Only the upper and lower walls are made into morphs, the rest are walls.
The overlapping part of the diagonal line was removed by SOEing the wall.

But is it okay to leave the wall created with morph as is?
Do I need to add SOE to any wall?

AC27 on window 11
Patrick M
Advisor

the shape you have shown as a morph may need to be broken up, and used as operators on the wall finish using solid element operations.

BIM solutions and trouble shooting (self proclaimed) expert. Using Archicad 26 5002 US on Mac OS 11.5.2

Can you please explain a little longer?
1. I don’t understand the meaning of broken up.
2.I would like to know what the purpose of using solid element operations is.

Thank you for your interest.^^

AC27 on window 11
