I think I accidentally overlapped the Beam while practicing. How can I tell if the Beam overlap?

LeeJaeYoung
Virtuoso

I think I accidentally overlapped the eyes while practicing. How can I tell if the eyes overlap?

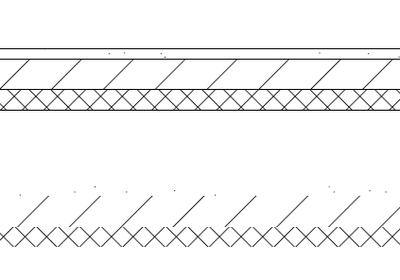

I found overlapping slabs in the cross section





after delete slab








Operating system used: Windows

AC27 on window 11
3 REPLIES 3
Jeff Thompson
Enthusiast

You could temporarily change one of the I-beams to a different building material type.  (Show as a different fill pattern type)  Then view it in the cross section to see the difference.  Your section cut has to be through the two I-beams for you to see the difference.

Project Manager
Rutledge Maul Architects, PS Inc., Seattle, WA
Windows 11 Pro, HP Pavilion Gaming Desktop 790, Intel(R) Core(TM) i7-8700 CPU @ 3.20GHz 3.19 GHz, 32.0 GB RAM, 64-bit operating system.
Archicad 28 - Graphisoft Forward

Thank you for your answer.

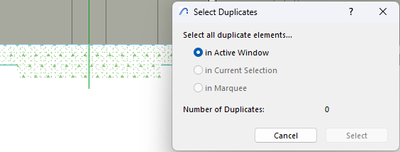

There is an overlap in beam and slab, but it is not searched in check duplicates.
In case of overlap, it seems that archicad often does not search.
Many people make mistakes in copying, etc.
I would like to know how to improve it.

AC27 on window 11
cuba
Expert

Check for duplicates only works when the objects are on the same position and have the same sizes;, in your case they overlap but the referenceline is not in same position.

There are other indicators like:

1/ lighter texture (overlapping geometry)


2/  strange fills/shadows in elevations:


3/ missing lines in sections


Probably more...



Best regards



Apple M1 Max 32 GB Ventura
AC27
