Merging Fills and Slabs

[Anonymous]

is it possible to merge that two objects?

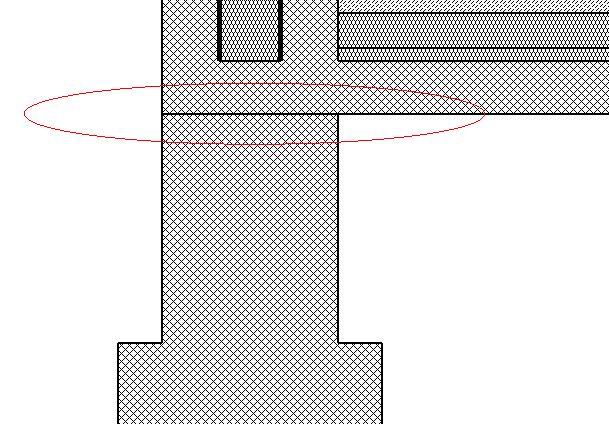

Uper is a slab, and lower is a fill...

thank you

[JaredBanks]

get rid of the fill and make the footing (lower piece) a complex profile. Otherwise, if you keep the lower fill you'll need to mask over the joint with more fills and lines.

[Anonymous]

JaredBanks wrote:
get rid of the fill and make the footing (lower piece) a complex profile. Otherwise, if you keep the lower fill you'll need to mask over the joint with more fills and lines.

but how can i make a complex profile? i have never used this option before...

[JaredBanks]

Read this recent thread:
http://archicad-talk.graphisoft.com/viewtopic.php?t=32404

[Anonymous]

ok thanks...

but when i create a custom profile and draw it on the floor plan, it is invisible...

does anybody knows why?

[JaredBanks]

are you drawing it with the wall tool? If so it's probably a display issue (probably set to cut only).

[Anonymous]

Is it possible the wall is shorter than your "cut plane"?
Try Projected with Overhead.
lec

[Anonymous]

JaredBanks wrote:
are you drawing it with the wall tool? If so it's probably a display issue (probably set to cut only).

yeah, i figured that this is the problem...

[Anonymous]

lec1212 wrote:
Try Projected with Overhead.

how to do that?

[Anonymous]

Try
