Problem with inclined walls
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2010-06-27 03:22 AM
2010-06-27
03:22 AM

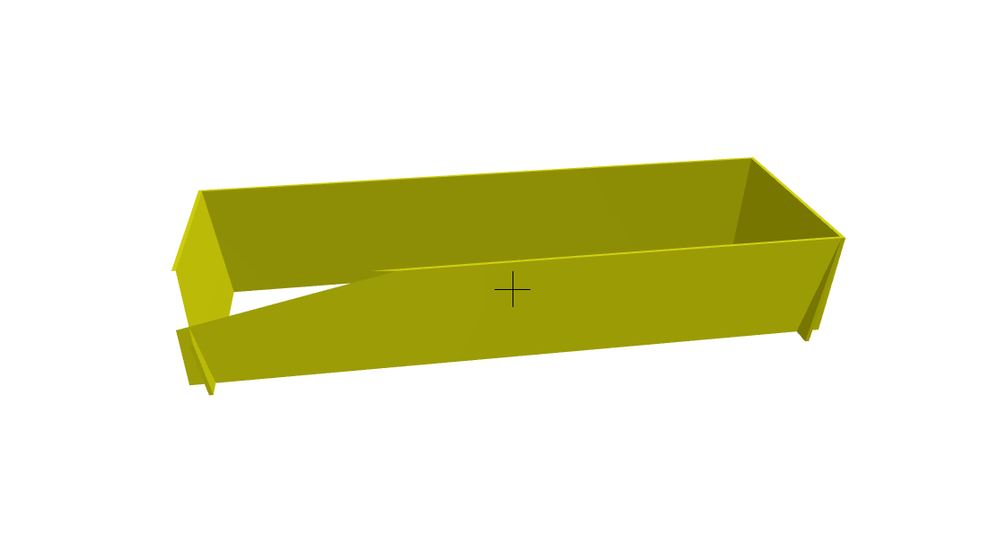

When i create an inclined wall, and i'm using a xref, the walls only show up in the 3D windows, and it happens something weird like it's showed in the picture.
If i create a new project file and i just create the inclined walls, everything seems to work fine.
Is this some kind of bug, or am i doing something wrong?
Best regards and thanks in advance.
Working on a Asus G73J Series:
Intel Core i7 CPU Q720
8GB (2048Mx4) DDR3 1066
ATI Mobility Radeon HD 5870 GDDR5 1024MB
1TB 7200rpm SATA (2 x 500GB)
Microsoft Windows 7 Ultimate x64
with Archicad 13 64-bits (educational) and Artlantis Studio 3.
Intel Core i7 CPU Q720
8GB (2048Mx4) DDR3 1066
ATI Mobility Radeon HD 5870 GDDR5 1024MB
1TB 7200rpm SATA (2 x 500GB)
Microsoft Windows 7 Ultimate x64
with Archicad 13 64-bits (educational) and Artlantis Studio 3.
