Roof Pivot Line or Pitch Point, how to hide

cadsph
Enthusiast

Hi,
I've got a simple roof.
How do I hide the Roof Pivot Line In Plan View?

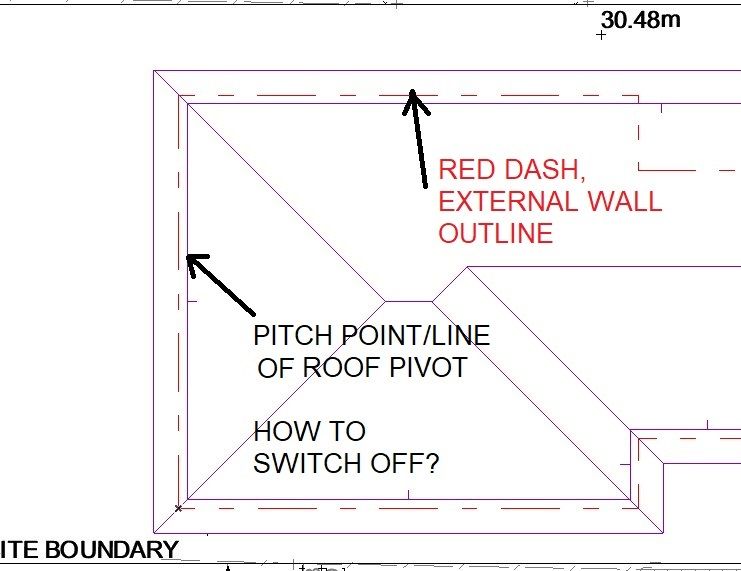

The Purple is the Roof, Red-dashed is Annotated line work of External Wall outline.

(Please see attached)


1 ACCEPTED SOLUTION

Accepted Solutions
Solution

That line won’t print on your drawings. Is a visual aid only. I believe you can turn them off under the on screen view options menu. I’ve never used it though.

Lee Hankins
ArchiCAD 4.5 - Archicad 27UKI Apple Silicon 27.2.0
macOS Sonoma (14.4.1)
