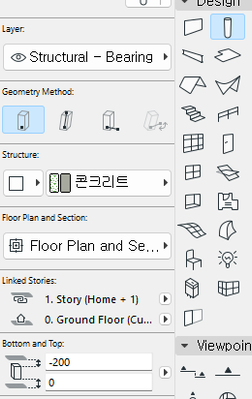

The top of the column is -200. Is there a reason?

LeeJaeYoung
Virtuoso

The top of the column is -200. Is there a reason?




AC27 on window 11
2 REPLIES 2
Gerry Leonor
Advisor

the top node of the column is linked to Storey 1. with a -200 offset.

if Storey 1. were to increase/decrease in distance between Storey 0., the column increases with it but will retain the -200mm offset.



this can be useful when you don't want the top column node to finish at the top of the Storey 1 slab, but instead to the underside of the slab, or at the slab thickening.

AC25 | Win10 | 64Gb RAM | Intel i7 13700F | RTX 4070 Ti
>come join our unofficial Discord server
https://discord.gg/XGHjyvutt8
LeeJaeYoung
Virtuoso

thank you so much. ^^

I had the idea that the upper and lower pillars should be connected to each other.
Shouldn't it be like that when calculating the structure?

AC27 on window 11
