Windows in 3D.

mukster
Booster

Using Archicad 24 on a MAC platform. Putting windows into a solid wall.  Some of the window stick way into the room, other windows do not. Checked all the settings, reveal is set at wall edge, still projects into the room

4 REPLIES 4
Eduardo Rolon
Moderator

Please post a screenshot.

  • USA or INT version?
  • Regular wall, composite or profile?
Eduardo Rolón AIA NCARB
AC27 US/INT -> AC08

Macbook Pro M1 Max 64GB ram, OS X 10.XX latest
another Moderator

mukster
Booster

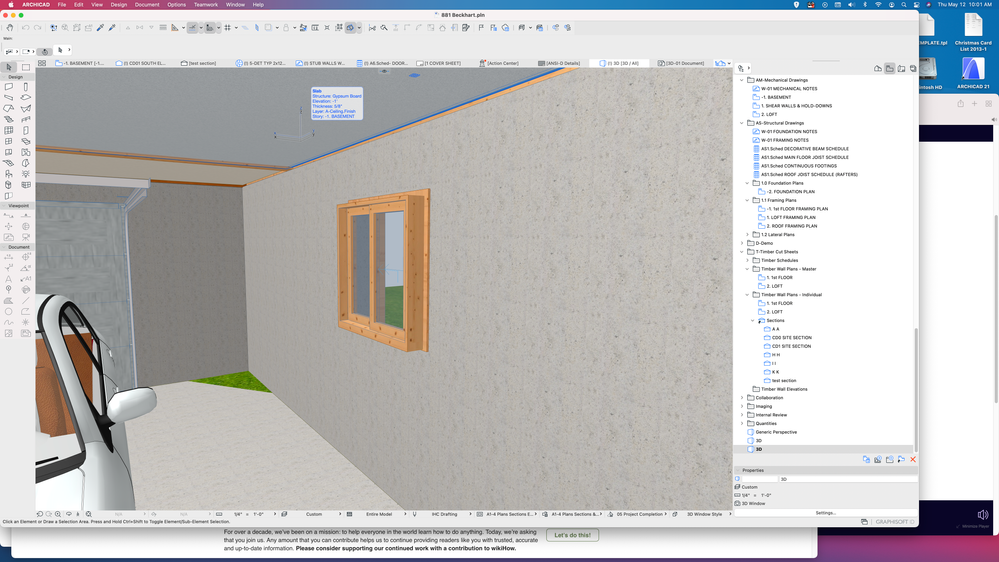

Screen Shot 2022-05-12 at 10.01.55 AM.png

mukster
Booster

USA version.



Eduardo Rolon
Moderator

Post screenshots of the wall and window settings?

Usually that is caused by the reveal in the window (which you said you checked) or if the wall is a profile then the window opening location

Eduardo Rolón AIA NCARB
AC27 US/INT -> AC08

Macbook Pro M1 Max 64GB ram, OS X 10.XX latest
another Moderator
