complex profiled walls and controlling their 2d appearance
Anonymous
Not applicable
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2008-02-01 07:16 PM
2008-02-01
07:16 PM
5 REPLIES 5
Anonymous
Not applicable
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2008-02-01 07:18 PM

Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2008-02-02 07:02 AM
2008-02-02
07:02 AM
Saraphim,
Adjust your floor plan cut plane to actually be through the stem wall on the foundation level. Then set your line for uncut portions to a dashed line of your preference. If you need the two different fill patterns, presumably brick on one side and concrete on the other, be sure your wall is built with the two different fills.
Adjust your floor plan cut plane to actually be through the stem wall on the foundation level. Then set your line for uncut portions to a dashed line of your preference. If you need the two different fill patterns, presumably brick on one side and concrete on the other, be sure your wall is built with the two different fills.
Erich
AC 19 6006 & AC 20
Mac OS 10.11.5
15" Retina MacBook Pro 2.6
27" iMac Retina 5K
AC 19 6006 & AC 20
Mac OS 10.11.5
15" Retina MacBook Pro 2.6
27" iMac Retina 5K
Anonymous
Not applicable
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2008-02-07 06:33 PM
2008-02-07
06:33 PM

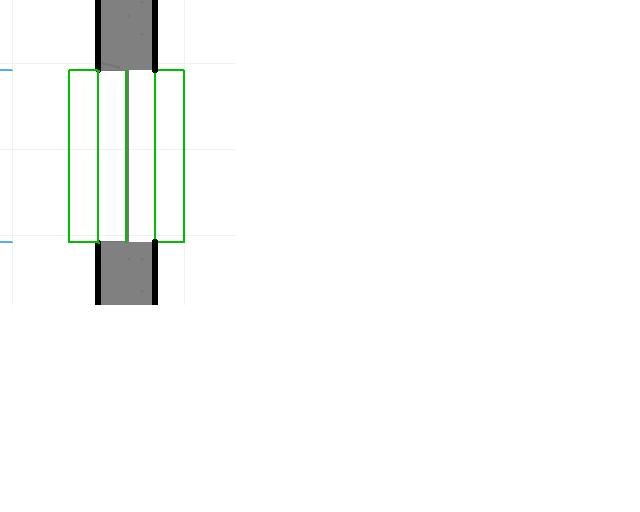

My complex wall shows the dashed lines representing the footer and the foundation fill. However when I switch to my layout all I have are several solid lines. Which settings control what will show up on my layout/PDF?

Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2008-02-07 07:48 PM
2008-02-07
07:48 PM
Seraphim wrote:It's the FPCP (floor plan cut plane) -- which is saved with each View. I suspect your active FPCP in your Viewpoint is different from the FPCP saved in the View (and ultimately the Drawing placed on your Layout).
My complex wall shows the dashed lines representing the footer and the foundation fill. However when I switch to my layout all I have are several solid lines. Which settings control what will show up on my layout/PDF?
MacBook Pro Apple M2 Max, 96 GB of RAM
AC27 US (5003) on Mac OS Ventura 13.6.2
Started on AC4.0 in 91/92/93; full-time user since AC8.1 in 2004
AC27 US (5003) on Mac OS Ventura 13.6.2
Started on AC4.0 in 91/92/93; full-time user since AC8.1 in 2004
Anonymous
Not applicable
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2008-02-07 09:10 PM
2008-02-07
09:10 PM
Thanks Laura, yet again you were able to get me heading in the right direction.
Much appreciated.
Much appreciated.
