Choose your top Archicad wishes!

Read more
Modeling
About Archicad's design tools, element connections, modeling concepts, etc.

complex roofs

Martin202-i
Participant

‎2023-11-15 04:26 AM


i need help with this type of roof





Labels:
0 Likes
3 REPLIES 3
Lee Hankins
Ace

‎2023-11-15 08:20 AM

You may be able to form It using a mesh and then use the mesh to roof converter add-on from the Goodies. A morph may also achieve that.

Lee Hankins
ArchiCAD 4.5 - Archicad 27UKI Apple Silicon 27.2.1
macOS Sonoma (14.5)
0 Likes
Barry Kelly
Moderator
In response to Lee Hankins

‎2023-11-15 09:05 AM

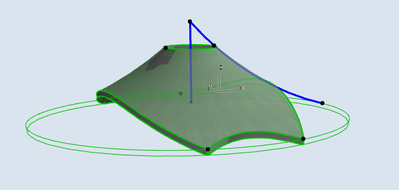

Maybe a rotated shell?

You can define the shell contour in plan (draw circles, trim them and then magic wand).

Create a hole (draw circle and magic wand).












Barry.





One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
mthd
Ace

‎2023-11-15 09:35 AM

That looks like an underslung sail with some cut outs. Ships ahoy !

AC8.1 - AC27 ARM AUS + CI Tools
Apple Mac Studio M1 Max Chip 10C CPU
24C GPU 7.8TF 32GB RAM OS Ventura
0 Likes
