modeling shape (side screening)
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2009-02-04 12:46 PM

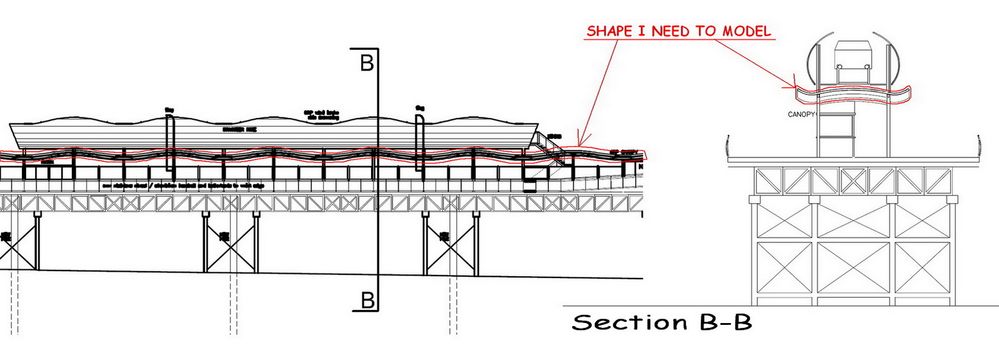

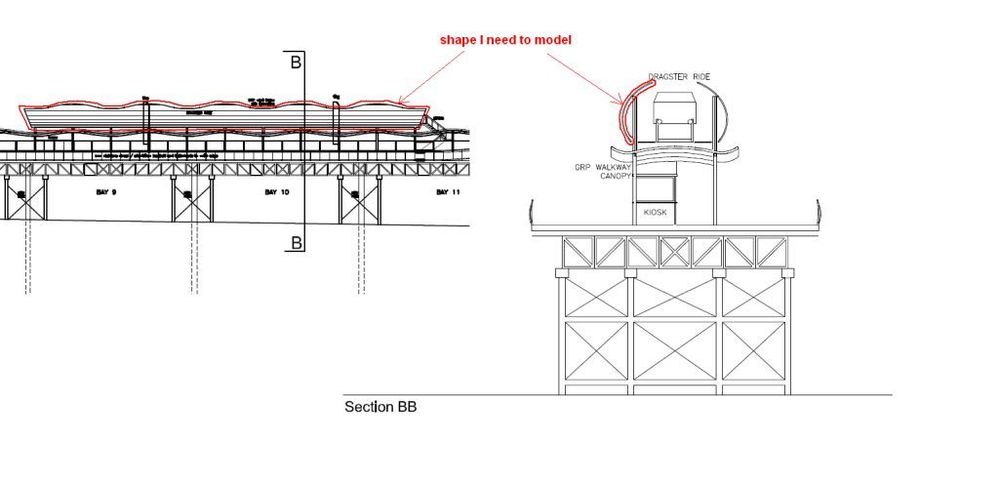

I need some help with modeling a funny shape side screening. I'm using Archicad 9. I'll try to attach some images so you can better understand what I'm after. If anyone could help, it would be very much appreciated.
Thank you in advance,
Regards,
Danivici
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2009-02-16 04:18 PM
Could you please help me with this as well? I just can't figure out what profiles should I use for SEO...
(I'm using Archicad 9)
Thank you in advance
Regards,
Danivici

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2009-02-16 05:40 PM
Then create two Walls perpendicular to each other and make a SEO intersection between the two.
AMD Ryzen9 5900X CPU, 64 GB RAM 3600 MHz, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), Windows 10 PRO ENG, Ac20-Ac28
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2009-02-16 09:02 PM
danivici wrote:Are you trying to produce something like the attached image?
Could you please help me with this as well? I just can't figure out what profiles should I use for SEO...
Central Innovation
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2009-02-16 10:43 PM
danivici wrote:Hi Danivici,
Could you please help me with this as well? I just can't figure out what profiles should I use for SEO...
Create a profiled wall (using a wavy profile that matches the elevation) by magic wanding a polyline (the polyline has the shape of the section B-B). Then you can save the result as an object (and thus achieving the rotation to horizontal position).
Cheers,
Adrian Tudoreanu

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2009-02-17 05:24 AM
ArchiCAD since 4.55 ... 1995
HP Omen
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2009-02-17 08:26 AM
Djordje wrote:Hm, How do you get it wavy along wall refline if you make the profile horizontal? Do you know something I don't?
If you define the profile as horizontal, instead of vertical, then no saving as an object is required. It can stay a wall.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2009-02-17 09:56 AM
Thank you all for your replys
Ralph: Yes, that's what I'm trying to produce
I'm using Archicad 9 and I'm not sure I'm able to create a profiled wall...
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2009-02-17 10:24 AM
Djordje wrote:I was suggesting that solution as the wavy profile has to follow a curved line that leaps on the Z axis (it has a double curvature). Am I missing something here?
If you define the profile as horizontal, instead of vertical, then no saving as an object is required. It can stay a wall.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2009-02-17 10:31 AM
danivici wrote:Hi Danivici,
I'm using Archicad 9 and I'm not sure I'm able to create a profiled wall...
I guess I haven't read very carefully your previous post (sorry about that). Basically, you can use the method I've described above in AC9 too, only that instead of profiled walls you can use the <Profiler> tool that comes as an add-on (it's the same profiler that Peter suggested in his post). Simply create that wavy profile using fills, then (using the profiler) create an object by following that curved line in plan. After that, simply rotate your object to become horizontal (you can do that by resaving it from the 3D window, while looking at it from the side or by using Peter's wonderful Rotator from here
Cheers,
Adrian Tudoreanu
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2009-02-17 11:40 AM
Thanks for your help
I'm trying to create the profile but after "magic wanding" the polyline I get the message/ warning below... It might be that AC9 can't do it

Cheers,
Danivici
